This structural detail specifies loading criteria and bending checks for a roof joist truss with a three-times nominal nailer attached to the top chord. The top chord must be checked for bending under a five hundred pound load, and the bottom chord under a two hundred pound load. In warehouse areas, designers must add a five hundred pound point load at any joint causing maximum stress in addition to roof loads, resulting in a horizontal force of 49.5 kips under LRFD. In office areas, a one-thousand pound point load must be added at any joint causing maximum stress in addition to roof and floor loads. All joist dimensions are to be verified per manufacturer drawings.

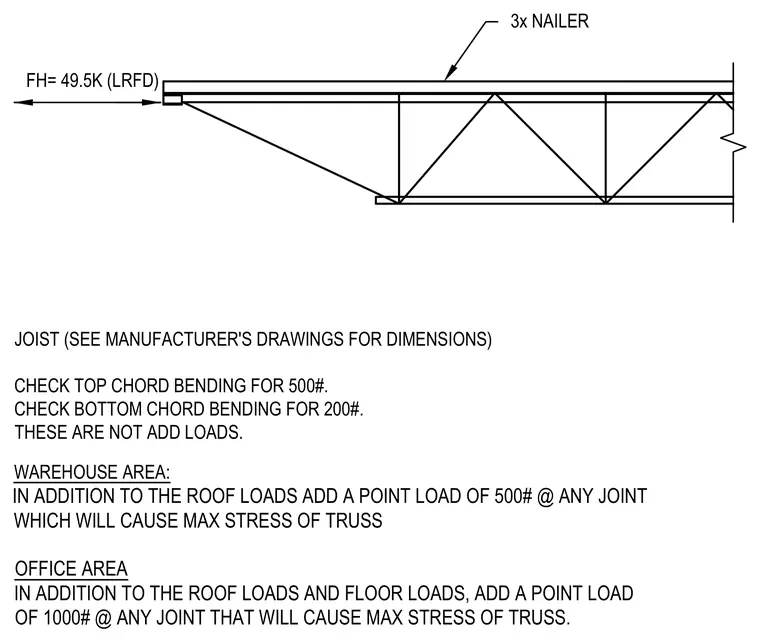

JOIST (SEE MANUFACTURER'S DRAWINGS FOR DIMENSIONS) CHECK TOP CHORD BENDING FOR 500#. CHECK BOTTOM CHORD BENDING FOR 200#. THESE ARE NOT ADD LOADS. WAREHOUSE AREA: IN ADDITION TO THE ROOF LOADS ADD A POINT LOAD OF 500# @ ANY JOINT WHICH WILL CAUSE MAX STRESS OF TRUSS FH= 49.5K (LRFD) 3x NAILER OFFICE AREA IN ADDITION TO THE ROOF LOADS AND FLOOR LOADS, ADD A POINT LOAD OF 1000# @ ANY JOINT THAT WILL CAUSE MAX STRESS OF TRUSS.
