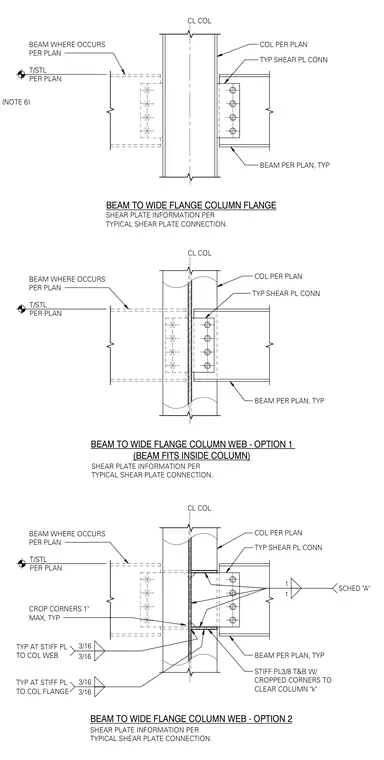

A structural framing connection where a beam connects to a wide flange column web using a typical shear plate connection with four bolts. Three-eighths-inch thick top and bottom stiffener plates with one-inch maximum cropped corners are provided to clear the column k-area. Three-sixteenths-inch fillet welds secure the stiffener plates to both the column web and the column flange. The beam and column sizes are sized per plan.
COL PER PLAN TYP SHEAR PL CONN BEAM PER PLAN, TYP BEAM TO WIDE FLANGE COLUMN FLANGE SHEAR PLATE INFORMATION PER TYPICAL SHEAR PLATE CONNECTION. CL COL COL PER PLAN TYP SHEAR PL CONN BEAM PER PLAN, TYP CL COL BEAM TO WIDE FLANGE COLUMN WEB - OPTION 1 (BEAM FITS INSIDE COLUMN) SHEAR PLATE INFORMATION PER TYPICAL SHEAR PLATE CONNECTION. CL COL COL PER PLAN TYP SHEAR PL CONN BEAM PER PLAN, TYP CROP CORNERS 1" MAX, TYP STIFF PL3/8 T&B W/ CROPPED CORNERS TO CLEAR COLUMN "k" BEAM TO WIDE FLANGE COLUMN WEB - OPTION 2 SHEAR PLATE INFORMATION PER TYPICAL SHEAR PLATE CONNECTION. BEAM WHERE OCCURS PER PLAN BEAM WHERE OCCURS PER PLAN t t SCHED "A" 3/16 3/16 3/16 3/16 FIELD WELDS (NOTE 6) BEAM WHERE OCCURS PER PLAN TYP AT STIFF PL TO COL WEB TYP AT STIFF PL TO COL FLANGE T/STL PER PLAN T/STL PER PLAN T/STL PER PLAN
