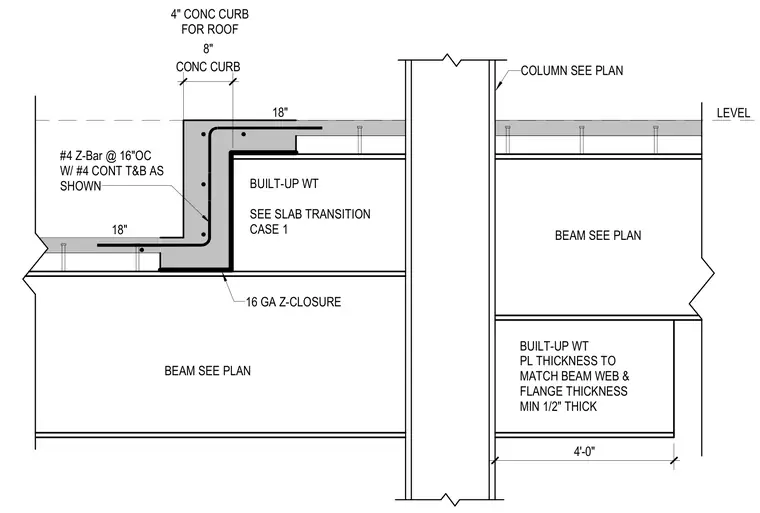

A concrete slab transition features a raised four-inch concrete curb supported by a built-up wide flange weight and a sixteen gauge Z-closure. Reinforcement consists of number four Z-bars spaced at sixteen inches on center with continuous number four top and bottom bars extending eighteen inches into the slab transition. The assembly ties into structural steel beams and a column sized per plan. A built-up wide flange plate with a thickness matching the beam web and flange, and a minimum one-half inch thickness, is provided below the structural connection.
#4 Z-Bar @ 16"OC W/ #4 CONT T&B AS SHOWN 18" 18" BUILT-UP WT SEE SLAB TRANSITION CASE 1 16 GA Z-CLOSURE LEVEL BEAM SEE PLAN BEAM SEE PLAN BUILT-UP WT PL THICKNESS TO MATCH BEAM WEB & FLANGE THICKNESS MIN 1/2" THICK 4' -0" CONC CURB 8" COLUMN SEE PLAN 4" CONC CURB FOR ROOF
