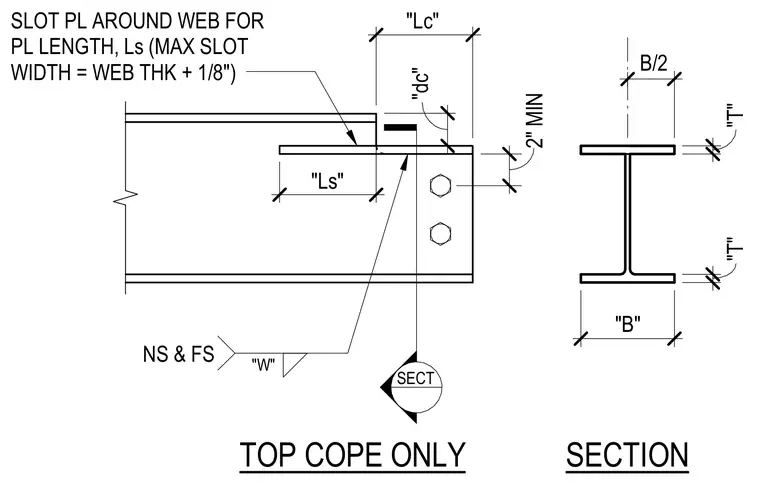

A structural steel beam features a top cope with a slotted plate fitted around the web for the plate length Ls. The slot width is specified as the web thickness plus one-eighth inch maximum. Welds are indicated on the near side and far side with size W. A minimum two-inch dimension governs the vertical clearance at the cope.
SECT 6" 2" NS & FS "W" SLOT PL AROUND WEB FOR PL LENGTH, Ls (MAX SLOT WIDTH = WEB THK + 1/8") 5 3/4" 2 7/8" "T" "T" 2" MIN 6" TOP COPE ONLY SECTION "Lc" "Ls" "dc" B/2 "T" "B" "T"
