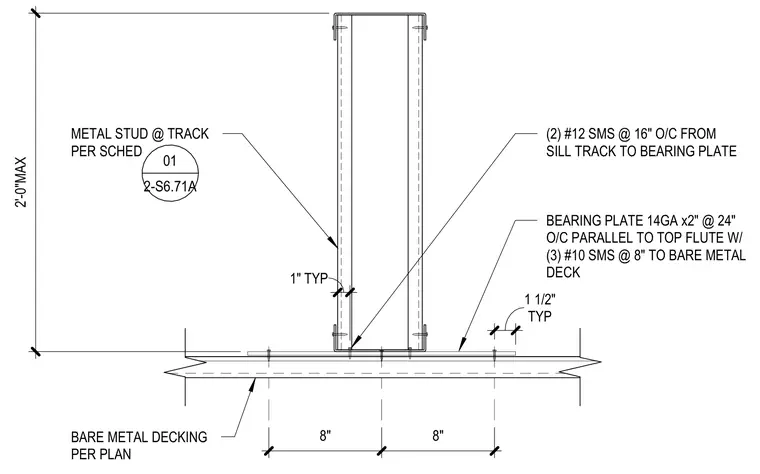

A cold-formed metal stud track bears directly onto a 14-gauge bearing plate spaced at twenty-four inches on center parallel to the top flute of a bare metal deck. The bearing plate is secured to the bare metal deck with three number ten self-metal screws at eight inches on center. The sill track connects to the bearing plate using two number twelve self-metal screws at sixteen inches on center. Metal studs frame into the track per the scheduled details.
BEARING PLATE 14GA x2" @ 24" O/C PARALLEL TO TOP FLUTE W/ (3) #10 SMS @ 8" TO BARE METAL DECK 1" TYP (2) #12 SMS @ 16" O/C FROM SILL TRACK TO BEARING PLATE BARE METAL DECKING PER PLAN METAL STUD @ TRACK PER SCHED 01 2-S6.71A 8" 8" 2'-0"MAX TYP 1 1/2"
