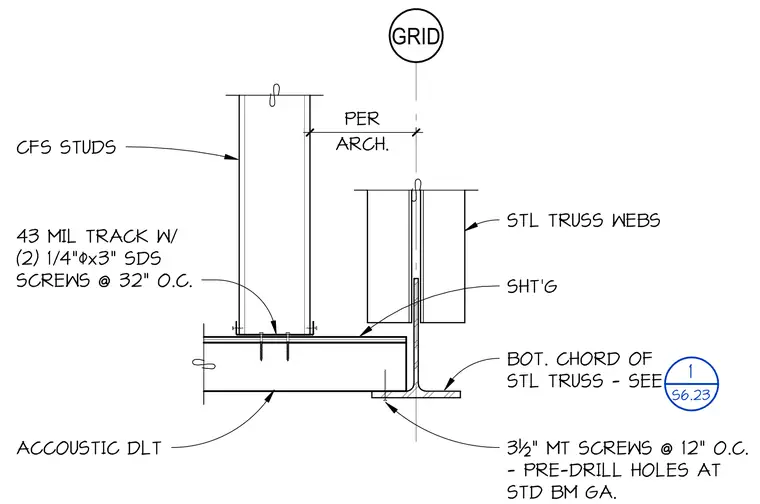

Cold-formed steel studs bear on a forty-three mil track fastened with two quarter-inch by three-inch self-drilling screws at thirty-two inches on center. The track and studs sit above acoustic decking supported by the bottom chord of a steel truss. The truss webs intersect the bottom chord near the structural grid line. Sheathing covers the top of the acoustic deck assembly. Three-and-a-half-inch machine thread screws are spaced at twelve inches on center with pre-drilled holes at standard beam gauge.
GRID ARCH. PER SHT'G 43 MIL TRACK W/ (2) 1/4"%x3" SDS SCREWS @ 32" O.C. CFS STUDS STL TRUSS WEBS BOT. CHORD OF STL TRUSS - SEE ACCOUSTIC DLT 3½" MT SCREWS @ 12" O.C. - PRE-DRILL HOLES AT STD BM GA. 1 S6.23
