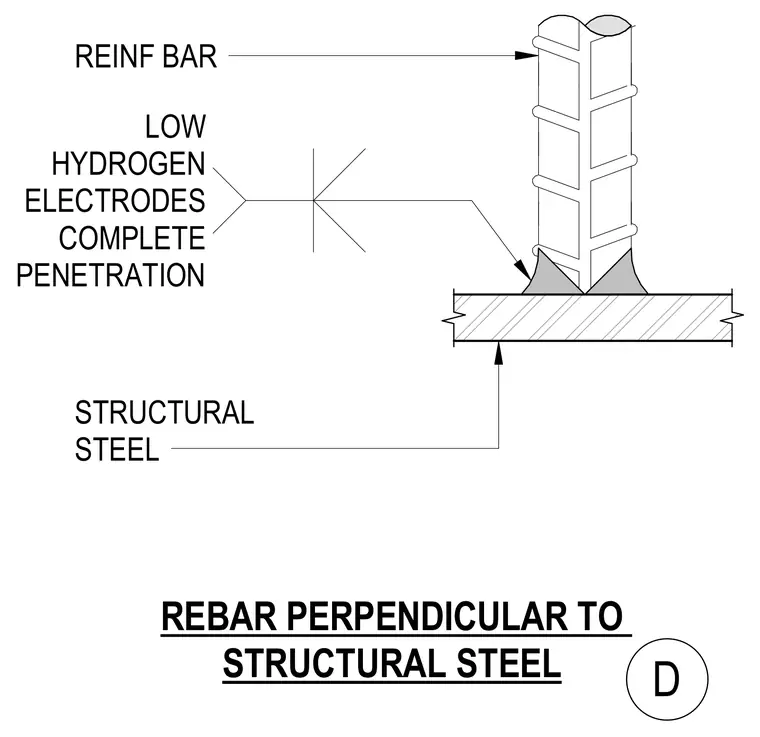

A vertical reinforcing bar is welded perpendicular to a horizontal structural steel member using low hydrogen electrodes with a complete penetration weld. The weld profile provides a full structural connection between the concrete reinforcing bar and the steel plate or section. Low hydrogen electrodes are specified to prevent cracking in the welded joint.
STRUCTURAL STEEL REBAR PERPENDICULAR TO STRUCTURAL STEEL LOW HYDROGEN ELECTRODES COMPLETE PENETRATION REINF BAR D
