Structural · S-48SMR

Welded Beam to Column Moment Connection

Materials

weld

Elements

Bracing Connections / Plates

Connections

Braced Frame Connection Welded Connection Bolted Connection

About this detail

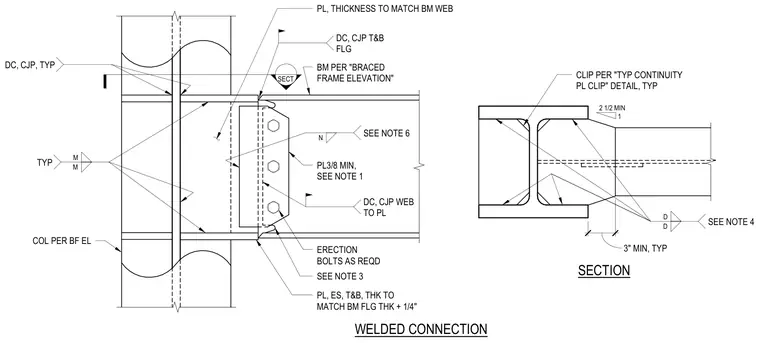

A welded beam-to-column moment connection frames a steel beam into a steel column. The connection utilizes complete joint penetration welds at the top and bottom flanges, backed by continuity plates and plates sized to match the beam flange thickness plus one quarter inch. A plate with a minimum thickness of three eighths of an inch connects the beam web using erection bolts as required, with complete joint penetration welds joining the web to the plate. Typical clips and weld symbols are provided throughout the assembly as specified on the structural drawings.
