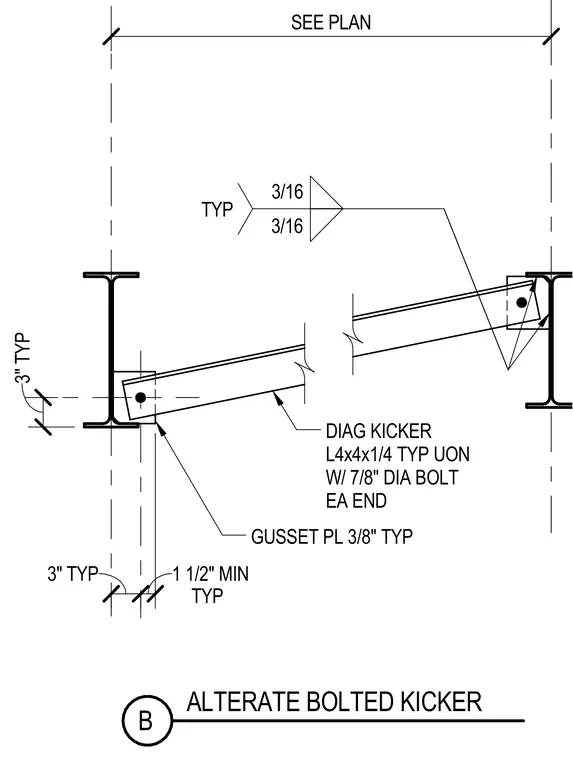

This connection details a diagonal kicker utilizing an L4x4x1/4 angle member tied to structural steel framing. Three-eighths inch thick gusset plates are welded to the beam bottom flange with typical three-sixteenths inch fillet welds. The diagonal kicker connects to each gusset plate using seven-eighths inch diameter bolts at each end. Typical spacing and edge dimensions include three-inch clearances and one-and-one-half inch minimum dimensions as noted.
TYP GUSSET PL 3/8" TYP ALTERATE BOLTED KICKER B SEE PLAN 3" TYP 3" TYP 1 1/2" MIN DIAG KICKER L4x4x1/4 TYP UON W/ 7/8" DIA BOLT EA END 3/16 3/16 TYP
