Structural · S-48CSA

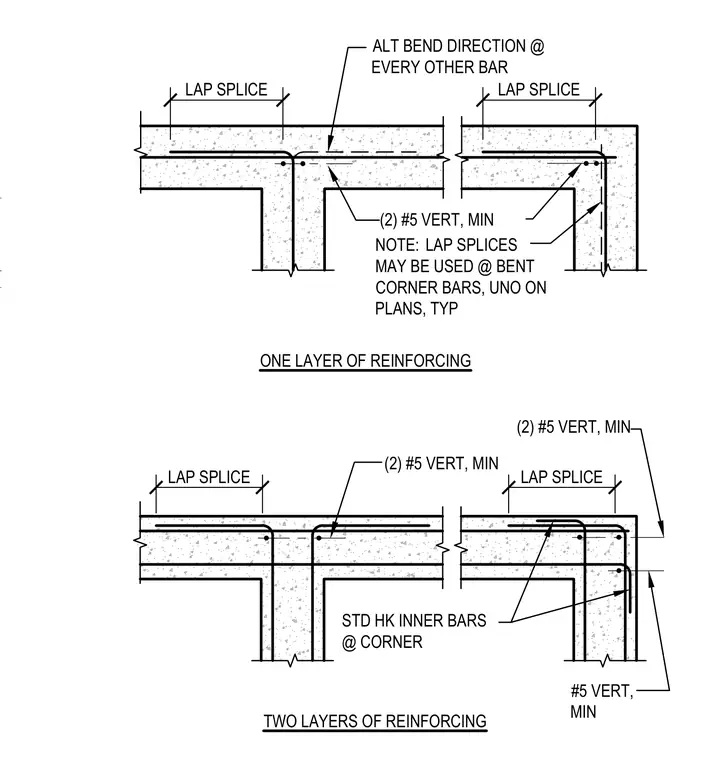

Concrete Footing and Wall Intersection Reinforcement Detail

Elements

Walls Foundations / Footings Reinforcing

Connections

About this detail

Concrete footing and wall intersections require specific rebar placement and lap splices for both single and double layers of reinforcing. Two number five vertical bars minimum run continuously through the wall intersection, supplemented by standard hook inner bars at the corners. Lap splices are used at bent corner bars unless noted otherwise on plans. Bend directions alternate at every other bar to maintain proper structural integrity.
