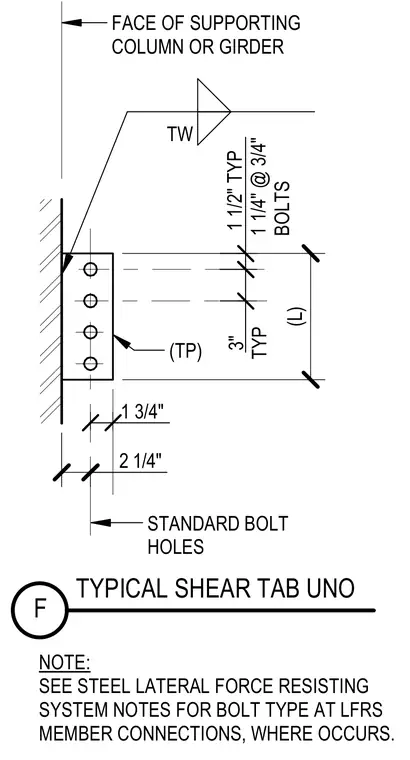

A structural steel shear tab single plate connection is welded to the face of a supporting column or girder. Standard bolt holes are spaced at three inches typical with edge distances of one and three-quarter inches and two and one-quarter inches. A note directs to steel lateral force resisting system notes for bolt types at lateral force resisting system member connections where applicable.
FACE OF SUPPORTING COLUMN OR GIRDER NOTE: SEE STEEL LATERAL FORCE RESISTING SYSTEM NOTES FOR BOLT TYPE AT LFRS MEMBER CONNECTIONS, WHERE OCCURS. TYPICAL SHEAR TAB UNO F STANDARD BOLT HOLES (TP) 1 1/2" TYP 1 1/4" @ 3/4" BOLTS 3" TYP (L) 1 3/4" 2 1/4" TW
