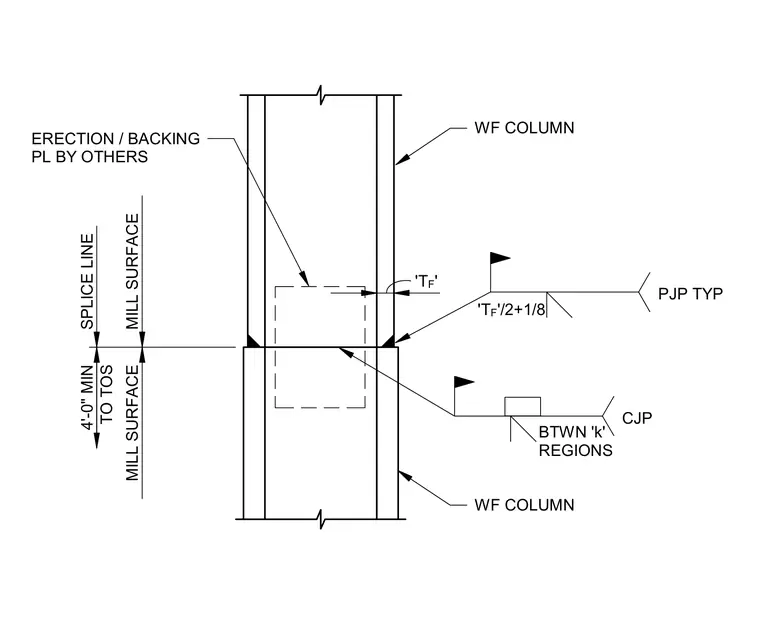

Two wide flange steel columns meet at a horizontal splice line with milled bearing surfaces. Erection backing plates are provided by others at the interior flange connections. A complete joint penetration weld connects the flanges between the k-regions, while partial joint penetration welds are used typically along the remaining flange width. The splice requires a minimum four-foot clearance to the top of steel.
WF COLUMN WF COLUMN 'T F ' ERECTION / BACKING PL BY OTHERS 'T F '/2+1/8 BTWN 'k' REGIONS . CJP PJP TYP SPLICE LINE MILL SURFACE 4'-0" MIN TO TOS MILL SURFACE
