The concrete slab features reinforcement sized per plan with an intentionally roughened surface to one-quarter-inch amplitude at the joint. Dowels with standard hooks tie the slab to the wall below, with size and spacing matching the vertical wall reinforcement. Wall reinforcement laps per schedule or structural plans with designated clearance cover on each face. Waterproofing and drainage are provided per architectural drawings, with shoring and sidewalks indicated by others.

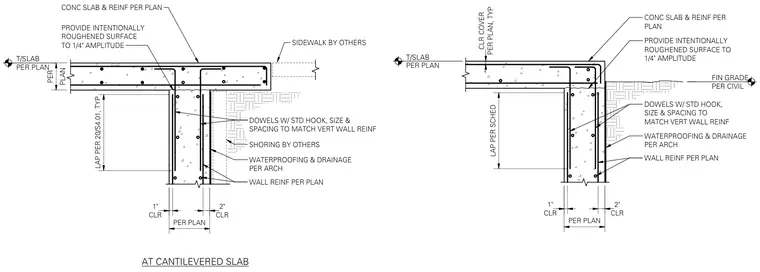

CONC SLAB & REINF PER PLAN PROVIDE INTENTIONALLY ROUGHENED SURFACE TO 1/4" AMPLITUDE DOWELS W/ STD HOOK, SIZE & SPACING TO MATCH VERT WALL REINF WATERPROOFING & DRAINAGE PER ARCH WALL REINF PER PLAN LAP PER SCHED PER PLAN, TYP CLR COVER CLR 1" CLR 2" PER PLAN T/SLAB PER PLAN FIN GRADE PER CIVIL CONC SLAB & REINF PER PLAN PROVIDE INTENTIONALLY ROUGHENED SURFACE TO 1/4" AMPLITUDE DOWELS W/ STD HOOK, SIZE & SPACING TO MATCH VERT WALL REINF WATERPROOFING & DRAINAGE PER ARCH WALL REINF PER PLAN LAP PER 20/S4.01, TYP CLR 1" CLR 2" PER PLAN T/SLAB PER PLAN AT CANTILEVERED SLAB PLAN PER SIDEWALK BY OTHERS SHORING BY OTHERS
