Structural · S-47ZHJ

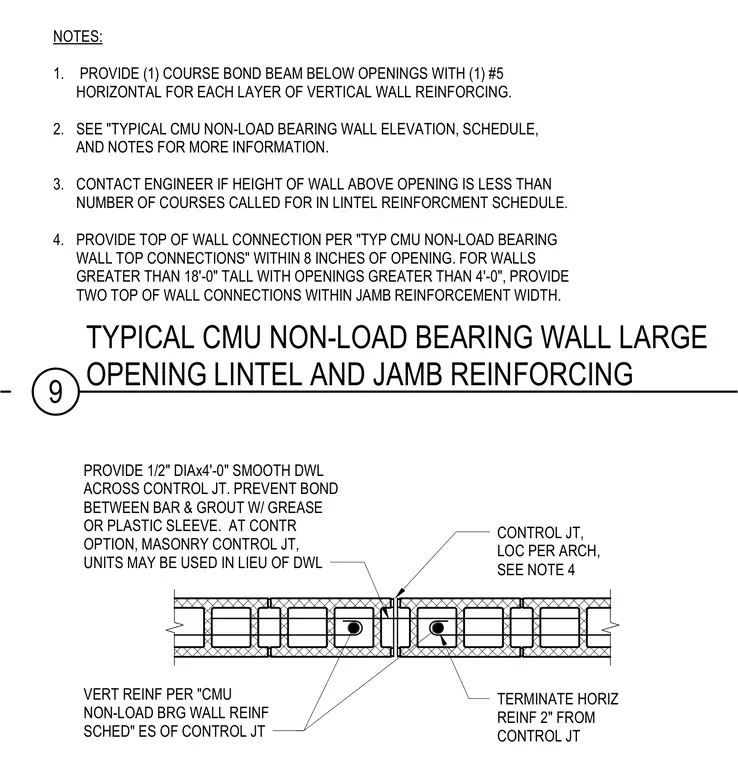

Typical CMU Non-Load Bearing Wall Large Opening Lintel and Jamb Reinforcing

Materials

Concrete Reinforced Concrete Masonry / CMU

Elements

Beams Walls Bearing Walls Arches Expansion / Control Joints Connections / Plates Reinforcing Roof / Floor Openings

About this detail

This structural detail provides masonry reinforcing and control joint requirements for large openings in non-load bearing concrete masonry unit walls. A bond beam is required below openings with one number five horizontal bar for each layer of vertical wall reinforcing. Control joints incorporate a one-half inch diameter by four-foot long smooth dowel greased or sleeved on one side to prevent bond with grout, or approved masonry control joint units. Horizontal reinforcing terminates two inches from the control joint. Top of wall connections are required within eight inches of openings, with two connections required within the jamb reinforcement width for walls greater than eighteen feet tall with openings greater than four feet.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
