Structural · S-47Z43

All Reinforcing Except Column Ties and Beam Stirrups

Elements

Columns Beams Walls Shear Walls Reinforcing

About this detail

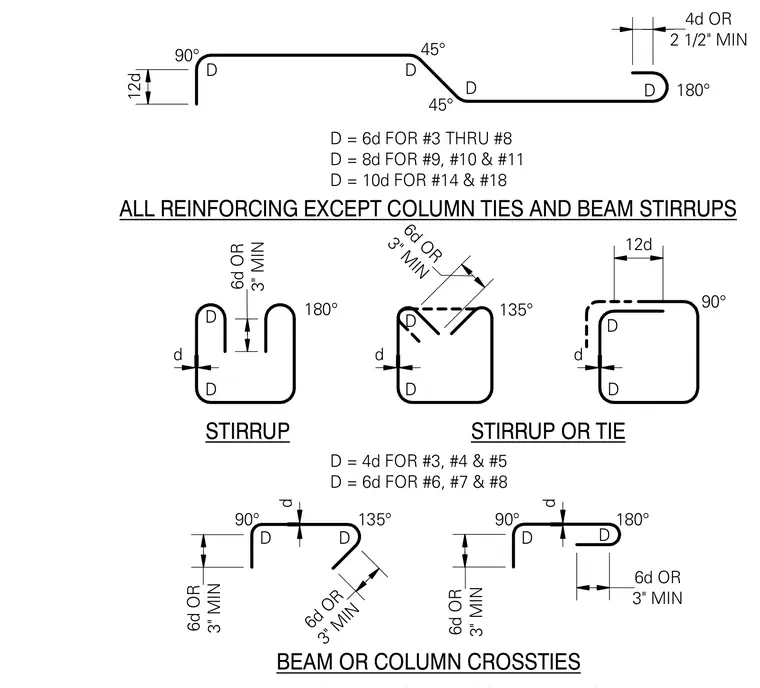

Standard hook dimensions and bend diameters for reinforcing steel are defined for various bar sizes. Bends include ninety-degree, one hundred eighty-degree, and forty-five-degree configurations with specific extension lengths and minimum requirements based on bar diameters. Stirrups, ties, and crossties follow designated bend radii scaling factors for size numbers three through eighteen.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
