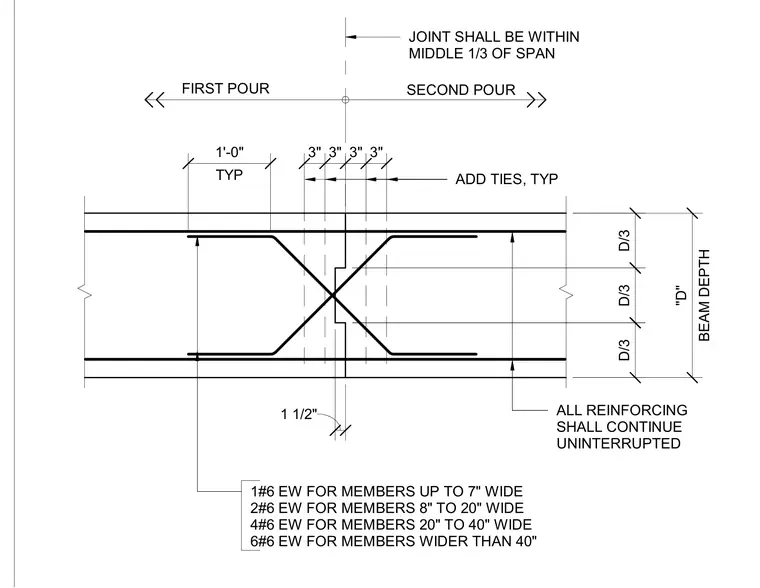

This concrete beam and girder construction joint detail specifies placement requirements for multi-pour elements. The construction joint must be located within the middle one-third of the span. All reinforcing steel continues uninterrupted across the joint interface, with added ties spaced progressively at three-inch increments near the junction. Reinforcement schedules dictate number six bars each way depending on the overall member width, ranging from one bar for members up to seven inches wide up to six bars for widths exceeding forty inches.
ADD TIES, TYP SECOND POUR FIRST POUR JOINT SHALL BE WITHIN MIDDLE 1/3 OF SPAN ALL REINFORCING SHALL CONTINUE UNINTERRUPTED 1#6 EW FOR MEMBERS UP TO 7" WIDE 2#6 EW FOR MEMBERS 8" TO 20" WIDE 4#6 EW FOR MEMBERS 20" TO 40" WIDE 6#6 EW FOR MEMBERS WIDER THAN 40" TYP 1'-0" D/3 D/3 D/3 BEAM DEPTH "D" 1 1/2" 3" 3" 3" 3"
