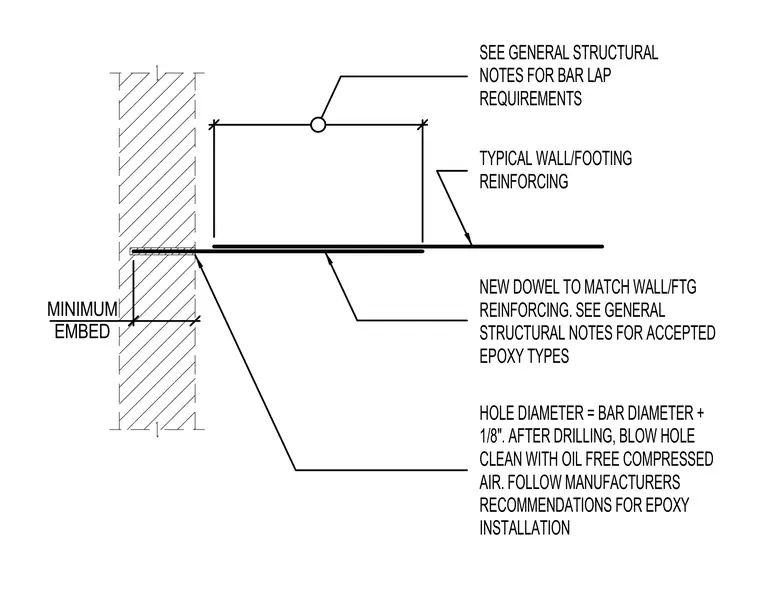

A new reinforcing dowel connects into an existing concrete wall or footing using an epoxy adhesive anchor. The drilled hole diameter equals the bar diameter plus one-eighth of an inch. Holes are cleaned with oil-free compressed air prior to epoxy installation following manufacturer instructions. Bar lap lengths and accepted epoxy types conform to general structural notes.
MINIMUM EMBED REINFORCING REQUIREMENTS TYPICAL WALL/FOOTING NOTES FOR BAR LAP SEE GENERAL STRUCTURAL INSTALLATION RECOMMENDATIONS FOR EPOXY AIR. FOLLOW MANUFACTURERS CLEAN WITH OIL FREE COMPRESSED 1/8". AFTER DRILLING, BLOW HOLE HOLE DIAMETER = BAR DIAMETER + STRUCTURAL NOTES FOR ACCEPTED REINFORCING. SEE GENERAL NEW DOWEL TO MATCH WALL/FTG EPOXY TYPES
