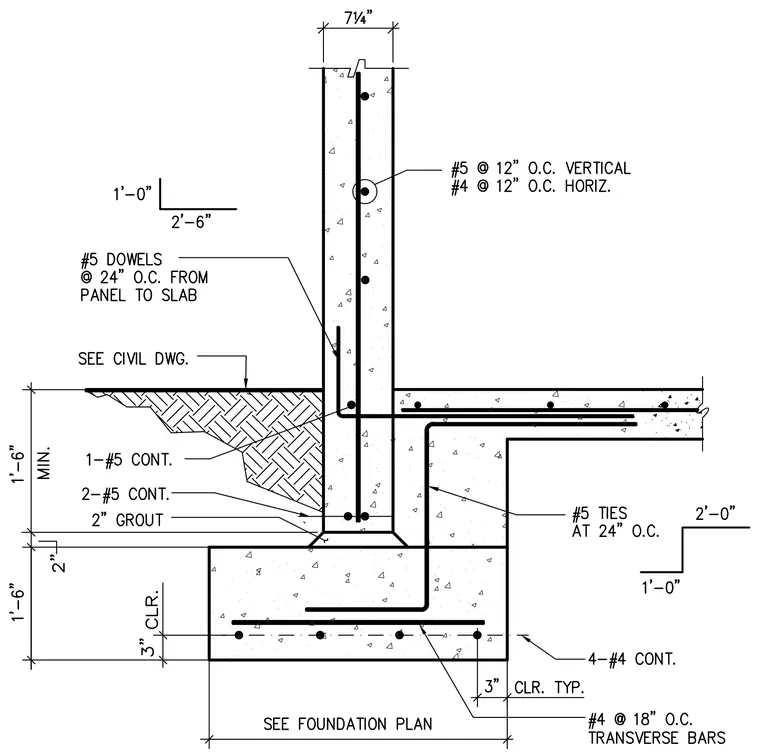

A concrete wall panel bears on a continuous concrete footing with a two-inch grout layer and continuous bottom reinforcement. The wall panel contains number five vertical reinforcing bars at twelve inches on center and number four horizontal reinforcing bars at twelve inches on center, with a thickness of seven and one-quarter inches. A concrete slab connects to the wall via number five dowels at twenty-four inches on center, supported by number five ties at twenty-four inches on center. The continuous footing includes four number four continuous longitudinal bars and number four transverse bars at eighteen inches on center with three inches of typical concrete clearance.
