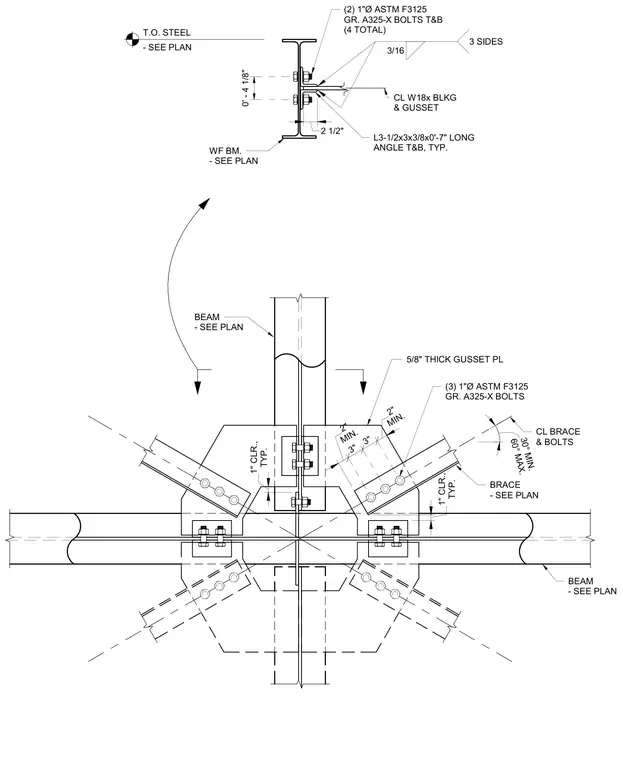

A horizontal brace connects to wide-flange beams using a five-eighths-inch-thick gusset plate. The braces connect to the gusset plate with three one-inch-diameter ASTM F3125 Grade A325-X bolts. Angles measuring three and a half by three by three-eighths by seven inches long are provided top and bottom, secured with two one-inch-diameter ASTM F3125 Grade A325-X bolts at top and bottom for a total of four bolts per angle. A three-sixteenths-inch fillet weld is applied on three sides at the center-line wide-flange backing and gusset plate assembly. The layout maintains a one-inch clearance typical between structural elements, with brace angles positioned between thirty and sixty degrees.
BEAM - SEE PLAN L3-1/2x3x3/8x0'-7" LONG ANGLE T&B, TYP. 5/8" THICK GUSSET PL CL BRACE & BOLTS (3) 1"Ø ASTM F3125 GR. A325-X BOLTS BEAM - SEE PLAN 3/16 3 SIDES WF BM. - SEE PLAN 0' - 4 1/8" MIN. 2" 3" 3" MIN. 2" TYP. 1" CLR., BRACE - SEE PLAN 60° MAX. 30° MIN. (2) 1"Ø ASTM F3125 GR. A325-X BOLTS T&B (4 TOTAL) CL W18x BLKG & GUSSET T.O. STEEL - SEE PLAN TYP. 1" CLR., 2 1/2"
