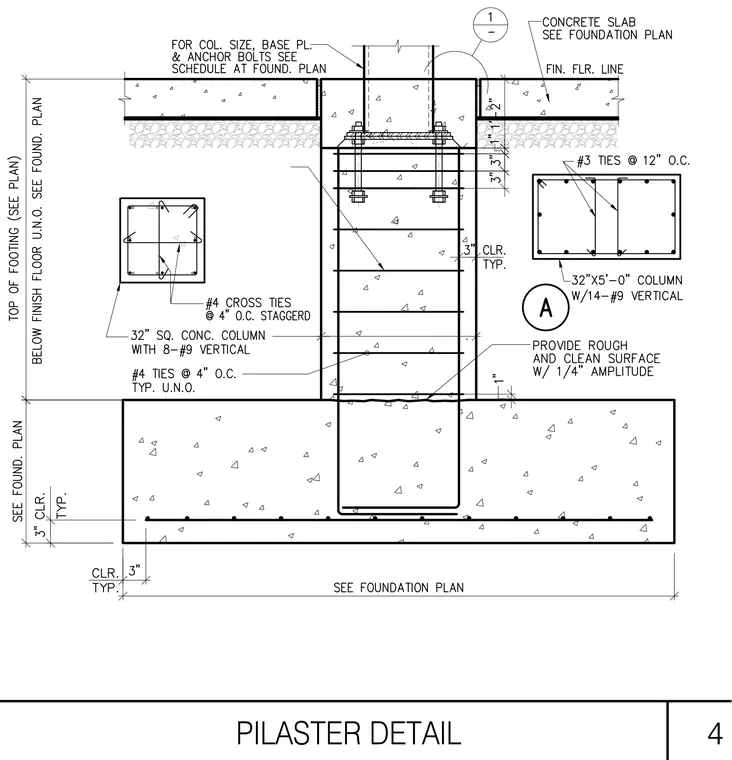

A square concrete column with vertical reinforcing bars and ties bears on a concrete foundation footing, extending upward to intersect a concrete slab. The thirty-two-inch square concrete column includes eight number nine vertical bars and number four ties spaced at four inches on center typically unless noted otherwise, with cross ties spaced at four inches on center staggered. The concrete footing features three inches of typical clear cover, with column sizes, base plates, and anchor bolts sized per the foundation plan. A roughened construction joint surface with a quarter-inch amplitude occurs at the interface, and a separate column section details thirty-two-inch by five-foot-zero-inch dimensions with fourteen number nine vertical bars and number three ties at twelve inches on center.
