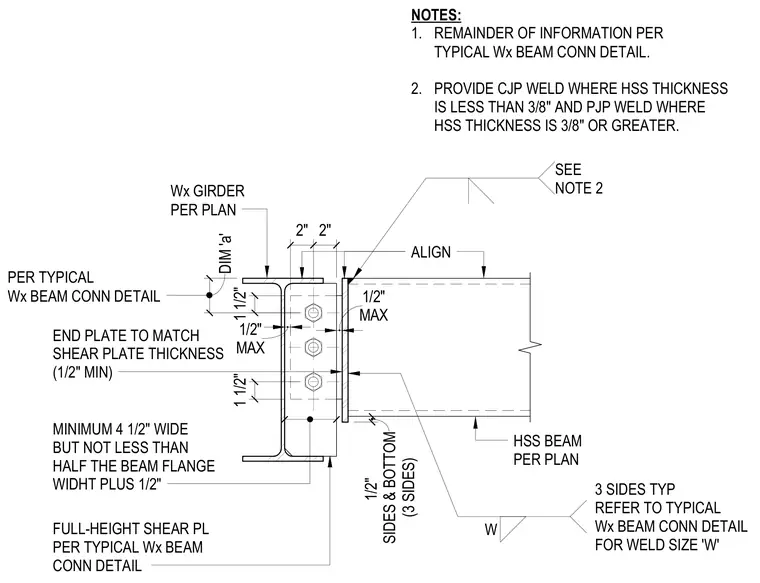

An HSS beam connects to a wide-flange girder using a full-height shear plate welded to the girder flange and bolted to an end plate on the HSS beam. The end plate matches the shear plate thickness with a one-half-inch minimum, while the girder flange requires a minimum width of four and one-half inches or not less than half the beam flange width plus one-half inch. A complete-joint-penetration weld or partial-joint-penetration weld is specified based on the HSS thickness, with fillet welds applied to three sides as detailed.
HSS BEAM PER PLAN DIM 'a' 1 1/2" 1 1/2" MAX 1/2" 2" 2" SEE NOTE 2 W Wx GIRDER PER PLAN MINIMUM 4 1/2" WIDE BUT NOT LESS THAN HALF THE BEAM FLANGE WIDHT PLUS 1/2" (3 SIDES) 1/2" SIDES & BOTTOM END PLATE TO MATCH SHEAR PLATE THICKNESS (1/2" MIN) NOTES: 1. REMAINDER OF INFORMATION PER TYPICAL Wx BEAM CONN DETAIL. 2. PROVIDE CJP WELD WHERE HSS THICKNESS IS LESS THAN 3/8" AND PJP WELD WHERE HSS THICKNESS IS 3/8" OR GREATER. MAX 1/2" ALIGN 3 SIDES TYP REFER TO TYPICAL Wx BEAM CONN DETAIL FOR WELD SIZE 'W' FULL-HEIGHT SHEAR PL PER TYPICAL Wx BEAM CONN DETAIL PER TYPICAL Wx BEAM CONN DETAIL
