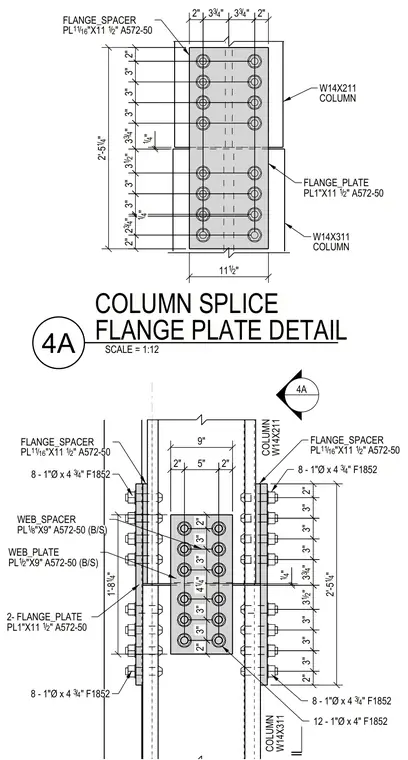

A heavy steel column splice joins an upper W14x211 column to a lower W14x311 column. The connection is made using 1 inch thick by 11-1/2 inch wide ASTM A572-50 flange plates secured with multiple rows of 1 inch diameter by 4-3/4 inch F1852 high-strength bolts. Flange spacers measuring 11/16 inch by 11-1/2 inch A572-50 accommodate the transition in column flange thickness between the different W-shape profiles. The web connection utilizes 1/2 inch by 9 inch ASTM A572-50 web plates on both sides of the web, accompanied by 1/8 inch by 9 inch web spacers and secured with 1 inch diameter by 4 inch F1852 bolts.
COLUMN SPLICE FLANGE PLATE DETAIL SCALE = 1:12 4A 8 - 1"Ø x 4 3 4 / " F1852 8 - 1"Ø x 4 3 4 / " F1852 3 34 / " COLUMN W14X211 COLUMN W14X311 4A FLANGE_SPACER PL 11 16 / "X11 1 2 / " A572-50 3" 2- FLANGE_PLATE PL1"X11 1 2 / " A572-50 3" FLANGE_SPACER PL 11 16 / "X11 1 2 / " A572-50 2" 3" 3 12 / " 14 / " 8 - 1"Ø x 4 3 4 / " F1852 8 - 1"Ø x 4 3 4 / " F1852 3" 12 - 1"Ø x 4" F1852 WEB_SPACER PL 1 8 / "X9" A572-50 (B/S) WEB_PLATE PL 1 2 / "X9" A572-50 (B/S) 2" 3" 3" 3" 3" 2" 5" 2" 9" 2'-5 14 / " 2" 4 14 / " 2" 1'-8 14 / " 3" 3" 2" 2 34 / " FLANGE_SPACER PL 11 16 / "X11 1 2 / " A572-50 3 12 / " FLANGE_PLATE PL1"X11 1 2 / " A572-50 3" 2" W14X211 COLUMN 3" W14X311 COLUMN 2'-5 14 / " 14 / " 2" 3" 3 3 4 / " 3 3 4 / " 2" 11 1 2 / " 3 34 / " 3" 3" 14 / "
