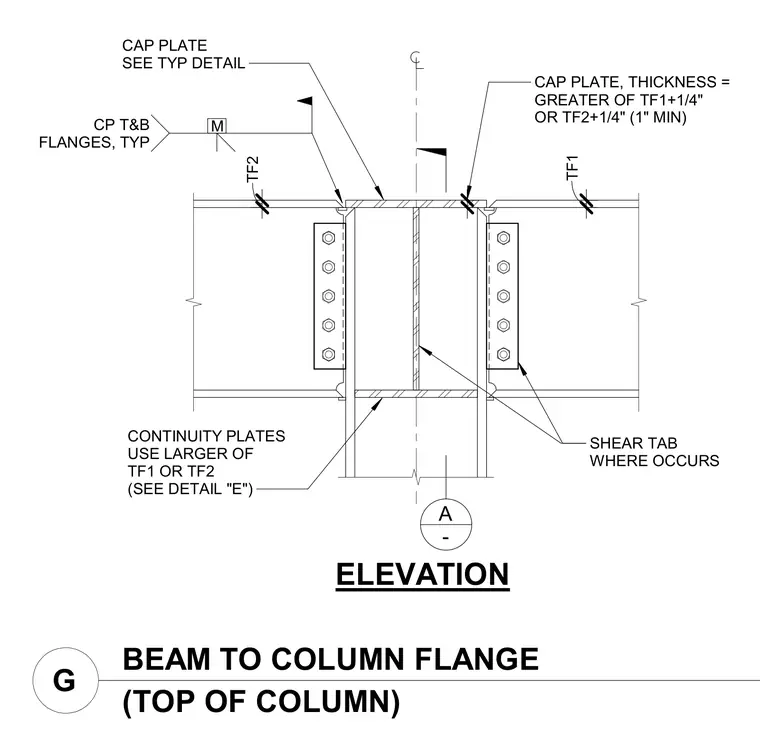

A steel beam frames into a column flange at the top of a column. A cap plate is welded across the top of the column flange, with a thickness determined by the greater of the connected beam flange thicknesses plus one-quarter inch, with a one-inch minimum. Continuity plates are provided inside the column web, sized using the larger of the beam flange thicknesses. Shear tabs are welded to the column flange where beams frame in, utilizing bolted connections to the beam webs.
BEAM TO COLUMN FLANGE G (TOP OF COLUMN) ELEVATION CONTINUITY PLATES USE LARGER OF TF1 OR TF2 (SEE DETAIL "E") CAP PLATE, THICKNESS = GREATER OF TF1+1/4" OR TF2+1/4" (1" MIN) CP T&B FLANGES, TYP M CAP PLATE SEE TYP DETAIL SHEAR TAB WHERE OCCURS TF2 TF1 - A
