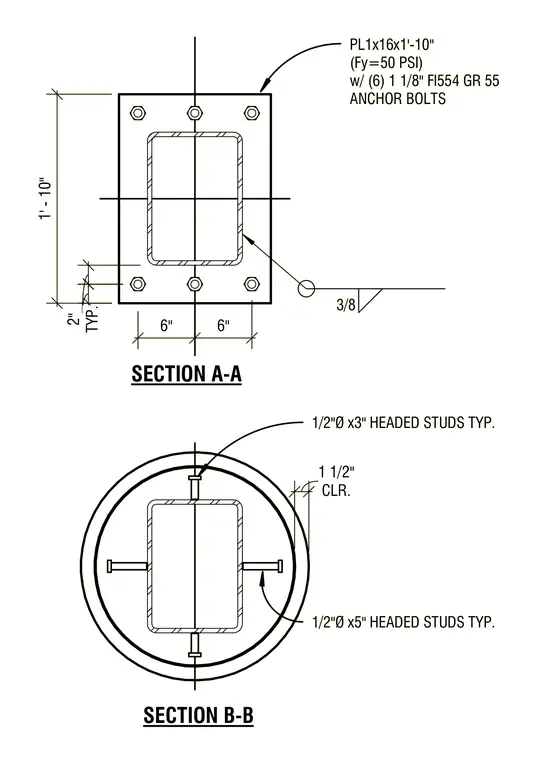

A structural steel hollow structural section column base plate connection. The assembly consists of a 1-inch by 16-inch by 1-foot 10-inch steel plate with a yield strength of 50 PSI, secured by six 1 1/8-inch F1554 Grade 55 anchor bolts. A 3/8-inch weld connects the structural steel column to the base plate. Additionally, 1/2-inch diameter by 3-inch and 5-inch typical headed studs are provided with a 1 1/2-inch clearance.
CLR. 1 1/2" SECTION B-B TYP. 2" 6" 6" 1' - 10" PL1x16x1'-10" (Fy=50 PSI) w/ (6) 1 1/8" FI554 GR 55 ANCHOR BOLTS 3/8 TYP. 2" SECTION A-A 1/2"Ø x3" HEADED STUDS TYP. 1/2"Ø x5" HEADED STUDS TYP. CLR. 1 1/2" SECTION B-B TYP. 2" 6" 6" 1' - 10" PL1x16x1'-10" (Fy=50 PSI) w/ (6) 1 1/8" FI554 GR 55 ANCHOR BOLTS 3/8 TYP. 2" SECTION A-A 1/2"Ø x3" HEADED STUDS TYP. 1/2"Ø x5" HEADED STUDS TYP.
