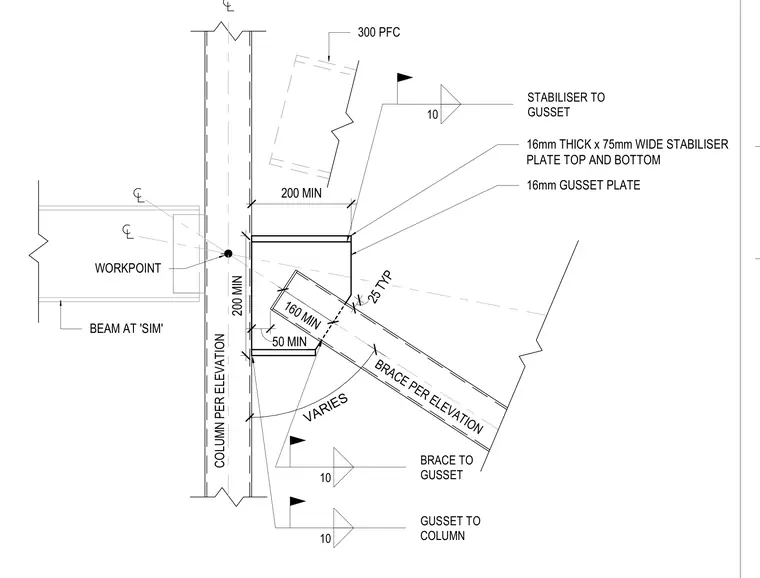

A structural steel bracing connection joining a 300 PFC brace member to a vertical column via a sixteen millimeter thick gusset plate. The gusset plate is welded to the column with a ten millimeter fillet weld and connects to the brace with a matching ten millimeter weld. Sixteen millimeter thick by seventy-five millimeter wide stabiliser plates are welded top and bottom to provide additional lateral restraint. A intersecting beam connects at the column workpoint per elevation.
300 PFC BRACE PER ELEVATION WORKPOINT COLUMN PER ELEVATION 10 GUSSET TO COLUMN 10 BRACE TO GUSSET 200 MIN 200 MIN 16mm GUSSET PLATE 16mm THICK x 75mm WIDE STABILISER PLATE TOP AND BOTTOM 160 MIN 25 TYP 50 MIN BEAM AT 'SIM' 10 STABILISER TO GUSSET VARIES
