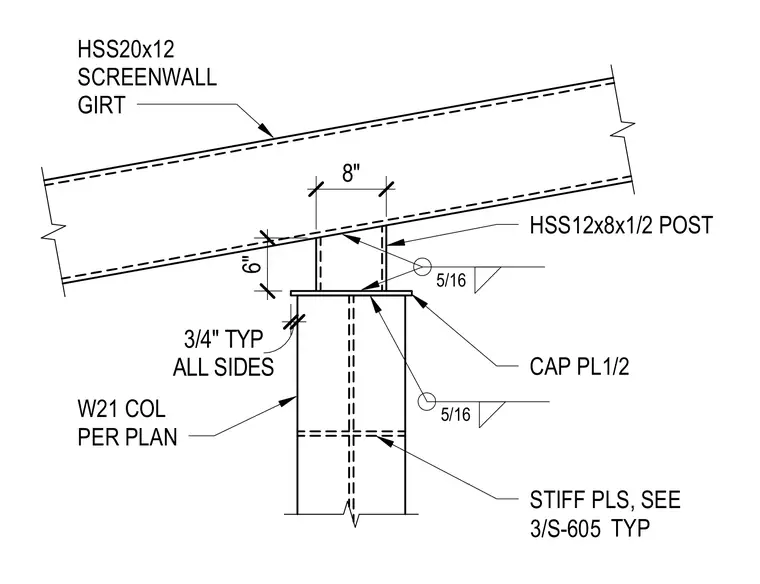

An HSS12x8x1/2 post supports an inclined HSS20x12 screenwall girt above a W21 structural steel column sized per plan. A 1/2-inch thick cap plate is welded to the top of the column with a three-quarter-inch fillet weld typical on all sides. The HSS post is secured to the cap plate with a five-sixteenth-inch fillet weld. Stiffener plates are provided inside the column and referenced to a typical detail.
6" 8" ALL SIDES 3/4" TYP 5/16 HSS12x8x1/2 POST CAP PL1/2 5/16 W21 COL PER PLAN HSS20x12 SCREENWALL GIRT STIFF PLS, SEE TYP 3/S-605
