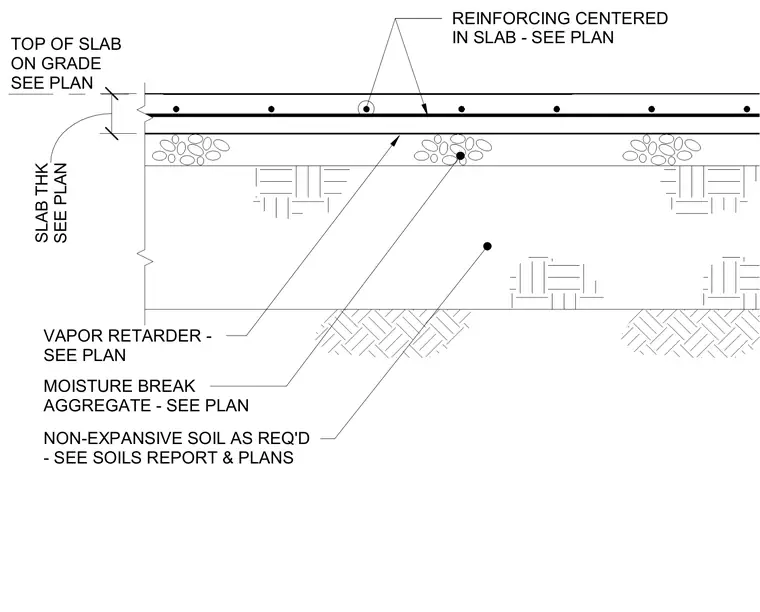

This structural detail shows a concrete slab on grade bearing on a compacted subgrade of non-expansive soil as required by the soils report and plans. A moisture break aggregate layer rests beneath a vapor retarder directly under the concrete slab. Reinforcing steel is centered within the slab thickness, with specific dimensions and sizes sized per plan.
TOP OF SLAB ON GRADE SEE PLAN NON-EXPANSIVE SOIL AS REQ'D - SEE SOILS REPORT & PLANS VAPOR RETARDER - SEE PLAN MOISTURE BREAK AGGREGATE - SEE PLAN REINFORCING CENTERED IN SLAB - SEE PLAN SEE PLAN SLAB THK .
