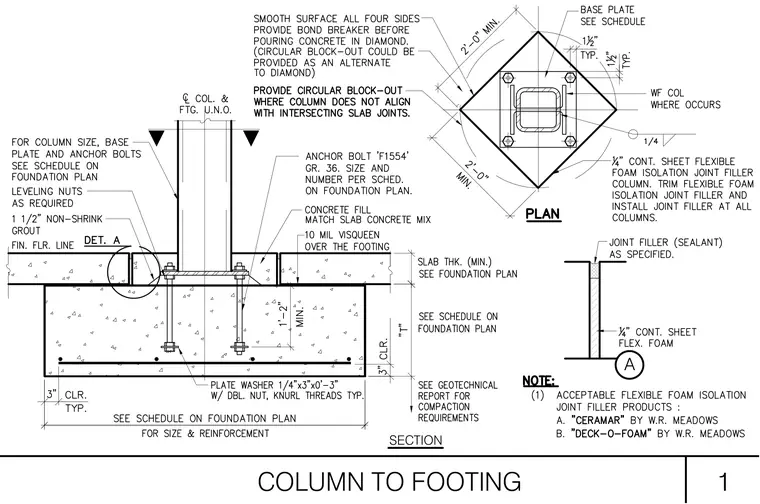

A wide flange structural steel column bears on a base plate atop a reinforced concrete footing with ASTM F1554 Grade 36 anchor bolts, leveling nuts, and a 1 1/2-inch non-shrink grout layer. A continuous sheet flexible foam isolation joint filler surrounds the column base within a concrete fill pocket separated by a 10 mil Visqueen vapor barrier over the footing. A diamond-shaped block-out with smooth surfaces and bond breaker allows for slab isolation. Plate washers measuring 1/4 inch by 3 inches by 3 inches with double nuts and knurled threads secure the anchor bolts.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
