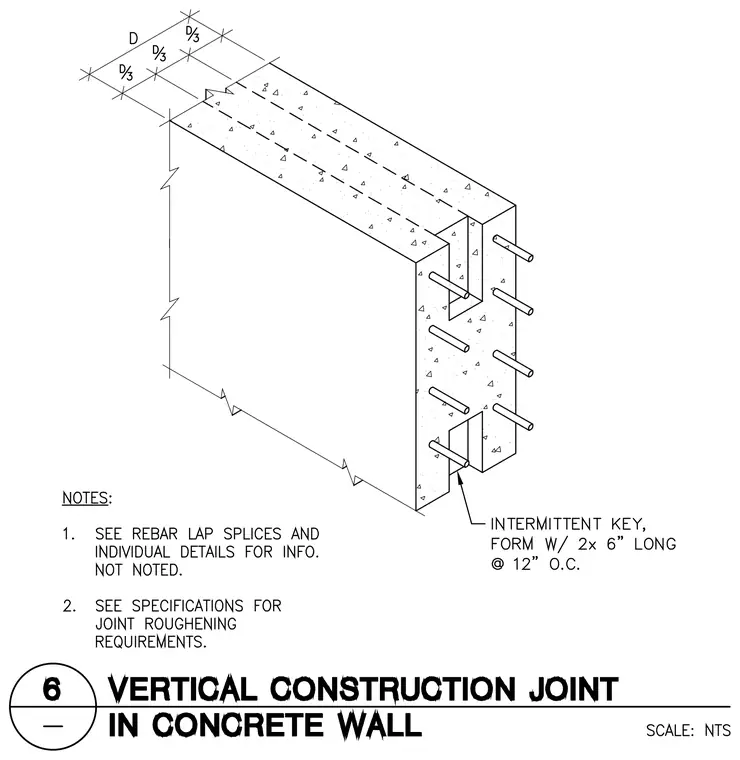

This vertical construction joint in a concrete wall incorporates horizontal dowel bars extending across the joint interface. An intermittent keyway is formed using two-by-six lumber pieces positioned at twelve inches on center. Rebar lap splices and joint roughening must comply with individual details and project specifications.
