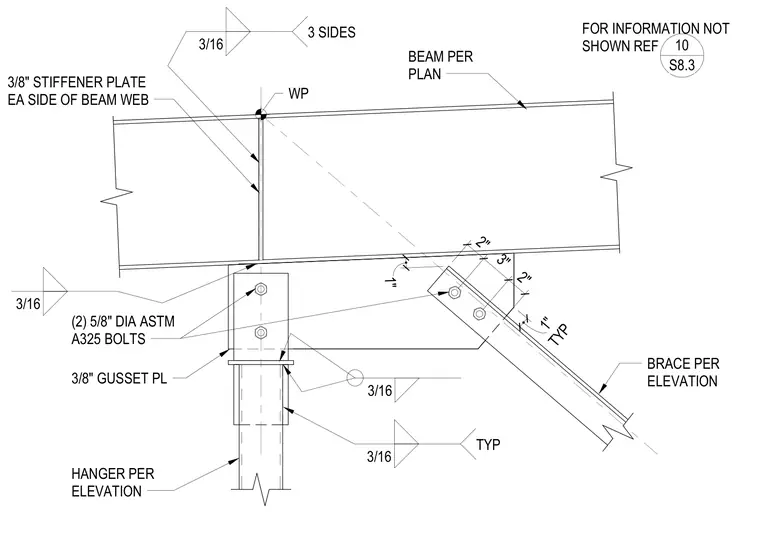

A structural steel backstop connection is detailed with a beam supported by a hanger per elevation and a three-eighths-inch gusset plate welded with three-sixteenths-inch fillet welds. The diagonal brace is secured to the gusset plate using two five-eighths-inch diameter ASTM A325 bolts with specified edge distances and spacings. Three-eighths-inch stiffener plates are welded to each side of the beam web at the working point with three-sixteenths-inch welds on three sides. Additional framing elements and hangers are coordinated per elevation and plan requirements, referencing sheet S8.3 for further information.
1" BRACE PER ELEVATION HANGER PER ELEVATION (2) 5/8" DIA ASTM A325 BOLTS WP BEAM PER PLAN 10 S8.3 FOR INFORMATION NOT SHOWN REF 3/16 3 SIDES 2" 3" 2" TYP 1" 3/8" STIFFENER PLATE EA SIDE OF BEAM WEB 3/8" GUSSET PL 3/16 TYP 3/16 3/16
