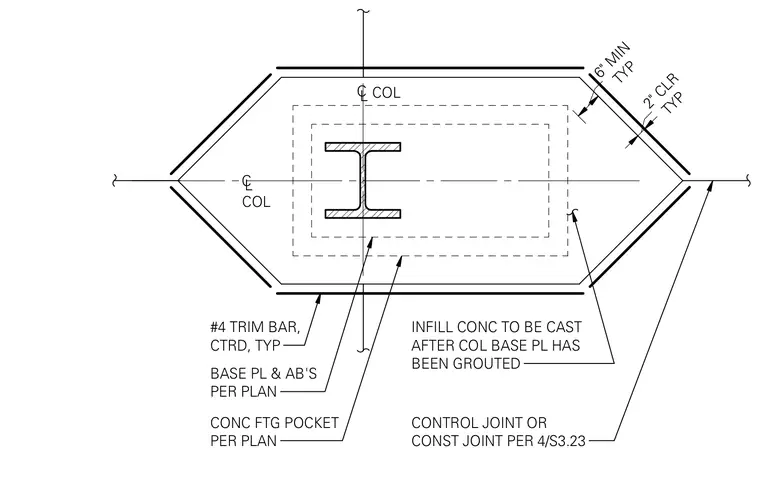

A steel column sits inside a concrete footing pocket sized per plan, centered on column lines with base plate and anchor bolts detailed elsewhere. Infill concrete is cast after the column base plate has been grouted. A control joint or construction joint is placed around the perimeter per structural requirements. Number four trim bars are centered typically in the surrounding concrete with a two-inch clear cover and six-inch minimum dimension.
CONTROL JOINT OR CONST JOINT PER 4/S3.23 INFILL CONC TO BE CAST AFTER COL BASE PL HAS BEEN GROUTED BASE PL & AB'S PER PLAN CONC FTG POCKET PER PLAN #4 TRIM BAR, CTRD, TYP TYP 6" MIN TYP 2" CLR COL C L COL C L
