Slab Edge Reinforcing Angle and Metal Edge Form Detail

Materials

Elements

About this detail

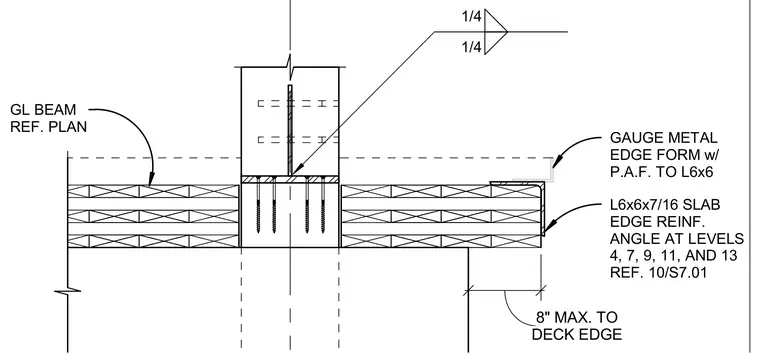

A gauge metal edge form is secured with powder-actuated fasteners to an L6x6 angle at the perimeter of the slab. An L6x6x7/16 slab edge reinforcing angle is installed at floor levels 4, 7, 9, 11, and 13 with a maximum 8-inch distance to the deck edge. The concrete deck bears on the steel beam referenced per plan, with welded connections indicated by quarter-inch fillet welds.
