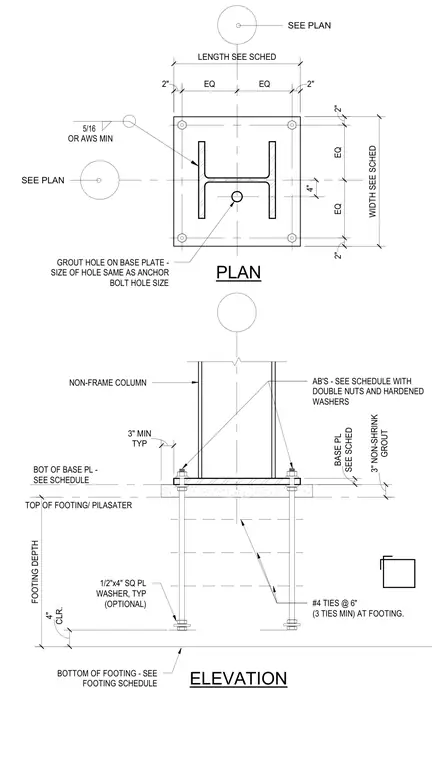

A non-frame structural steel column bears on a steel base plate set over three inches of non-shrink grout on a concrete footing or pilaster. Anchor bolts feature double nuts, hardened washers, and optional one-half-by-four-inch square plate washers at the embedded ends, with sizing specified per schedule. Four-inch number four ties spaced at six inches on center with a minimum of three ties reinforce the concrete footing. A four-inch grout hole is provided on the base plate matching the anchor bolt hole size. Fillet welds connect the column flanges and web to the base plate per American Welding Society standards with a minimum five-sixteenths inch size.
BOT OF BASE PL - SEE SCHEDULE TOP OF FOOTING/ PILASATER AB'S - SEE SCHEDULE WITH DOUBLE NUTS AND HARDENED WASHERS SEE PLAN SEE PLAN NON-FRAME COLUMN ELEVATION PLAN BOTTOM OF FOOTING - SEE FOOTING SCHEDULE 1/2"x4" SQ PL WASHER, TYP (OPTIONAL) OR AWS MIN 5/16 TYP 3" MIN GROUT 3" NON-SHRINK SEE SCHED BASE PL FOOTING DEPTH 2" EQ EQ 2" WIDTH SEE SCHED 2" EQ EQ 2" LENGTH SEE SCHED 4" GROUT HOLE ON BASE PLATE - SIZE OF HOLE SAME AS ANCHOR BOLT HOLE SIZE CLR. 4" #4 TIES @ 6" (3 TIES MIN) AT FOOTING.
