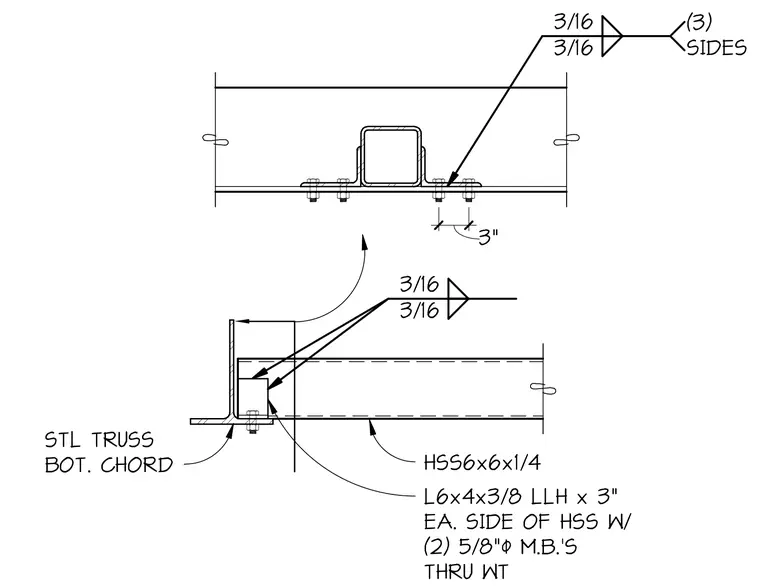

A hollow structural section member measuring six by six inches with a one-quarter-inch wall thickness connects to a steel truss bottom chord using two three-inch long leg angles measuring six by four by three-eighths inches. These angles are placed on each side of the hollow structural section with three-sixteenths-inch fillet welds on three sides. Two five-eighths-inch diameter machine bolts pass through the angles and the steel truss bottom chord.
3/16 3/16 (3) SIDES HSS6x6x1/4 L6x4x3/8 LLH x 3" EA. SIDE OF HSS W/ (2) 5/8"( M.B.'S THRU WT STL TRUSS BOT. CHORD 3/16 3/16 3"
