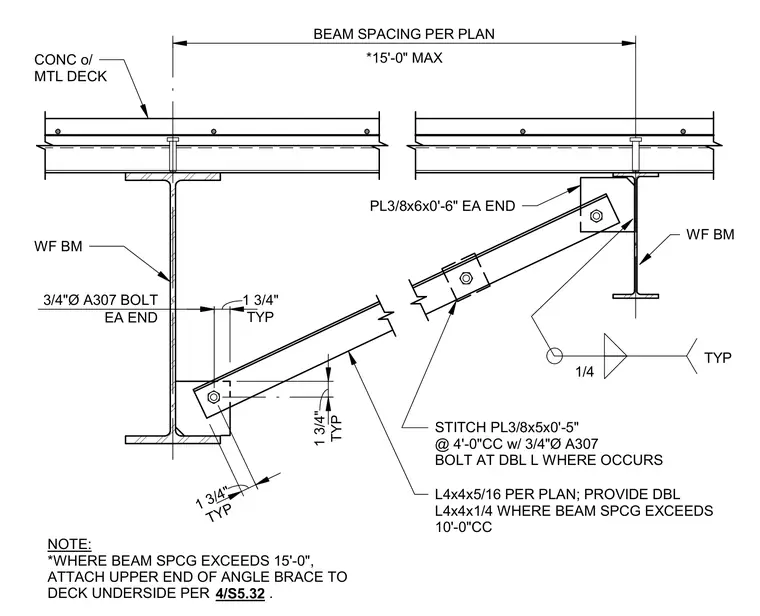

An L4x4x5/16 angle brace connects between wide-flange steel beams supporting a concrete slab over a metal deck. Double angles of L4x4x1/4 are provided where beam spacing exceeds ten feet center-to-center, with stitch plates measuring 3/8 by 5 by 5 inches spaced at four feet center-to-center using 3/4-inch diameter A307 bolts where double angles occur. Gusset plates measuring 3/8 by 6 by 6 inches are welded to each end of the brace with 1/4-inch fillet welds. Each end of the brace is secured with a 3/4-inch diameter A307 bolt. Where beam spacing exceeds fifteen feet, the upper end of the angle brace attaches to the underside of the deck.
L4x4x5/16 PER PLAN; PROVIDE DBL L4x4x1/4 WHERE BEAM SPCG EXCEEDS 10'-0"CC NOTE: *WHERE BEAM SPCG EXCEEDS 15'-0", ATTACH UPPER END OF ANGLE BRACE TO DECK UNDERSIDE PER . WF BM CONC o/ MTL DECK PL3/8x6x0'-6" EA END STITCH PL3/8x5x0'-5" @ 4'-0"CC w/ 3/4"Ø A307 BOLT AT DBL L WHERE OCCURS WF BM *15'-0" MAX BEAM SPACING PER PLAN 1/4 TYP TYP 1 3/4" TYP 1 3/4" TYP 1 3/4" 3/4"Ø A307 BOLT EA END 4/S5.32
