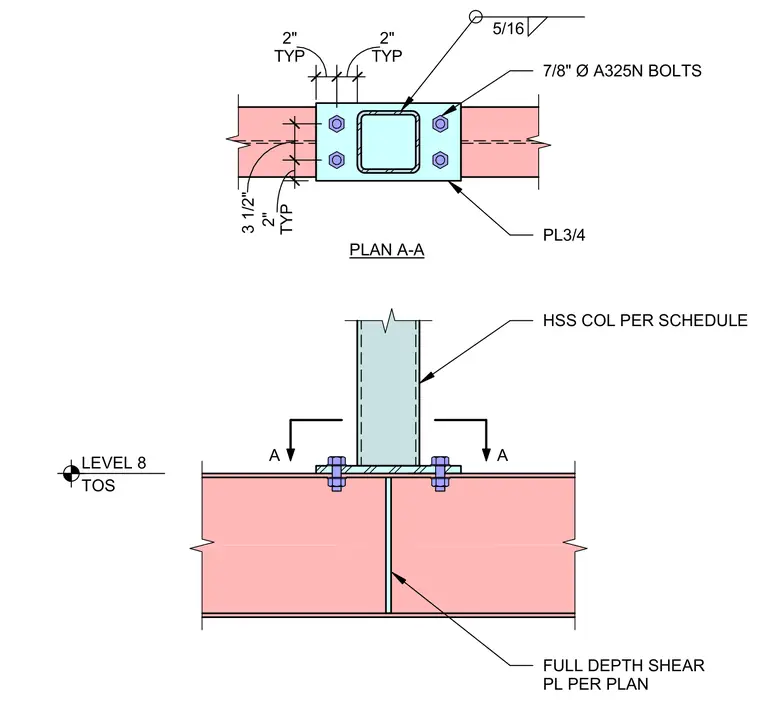

An HSS column base plate connection located at Level 8 consists of a hollow structural section column welded to a three-quarter-inch base plate. Four seven-eighth-inch diameter A325N bolts secure the base plate to the supporting beam flange. A five-sixteenth-inch fillet weld connects the HSS column to the base plate. The supporting beam features a full-depth shear plate sized per plan.
A A TYP 2" 3 1/2" TYP 2" TYP 2" PL3/4 7/8" Ø A325N BOLTS PLAN A-A 5/16 HSS COL PER SCHEDULE FULL DEPTH SHEAR PL PER PLAN TOS LEVEL 8
