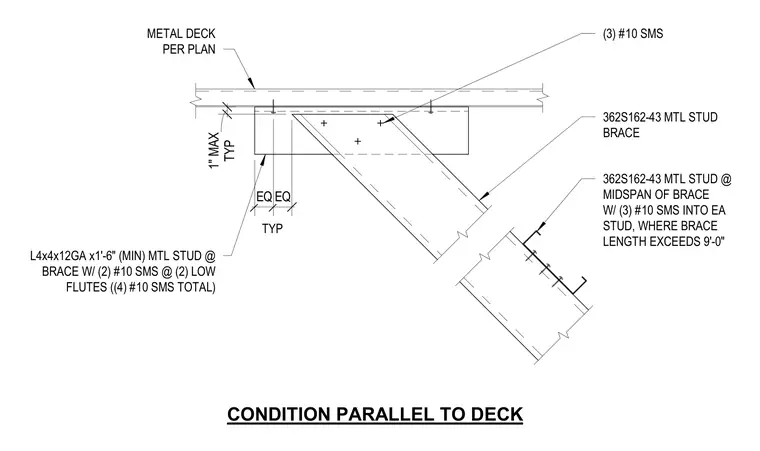

A 362S162-43 metal stud brace connects parallel to the metal deck using an L4x4x12-gauge angle that is one foot six inches minimum in length. The angle attaches to the metal deck with two number ten sheet metal screws at two low flutes for a total of four screws. A 362S162-43 metal stud is placed at the midspan of the brace, secured with three number ten sheet metal screws into each stud where the brace length exceeds nine feet.
CONDITION PARALLEL TO DECK L4x4x12GA x1'-6" (MIN) MTL STUD @ BRACE W/ (2) #10 SMS @ (2) LOW FLUTES ((4) #10 SMS TOTAL) 362S162-43 MTL STUD BRACE METAL DECK PER PLAN 362S162-43 MTL STUD @ MIDSPAN OF BRACE W/ (3) #10 SMS INTO EA STUD, WHERE BRACE LENGTH EXCEEDS 9'-0" TYP 1" MAX EQ EQ TYP (3) #10 SMS
