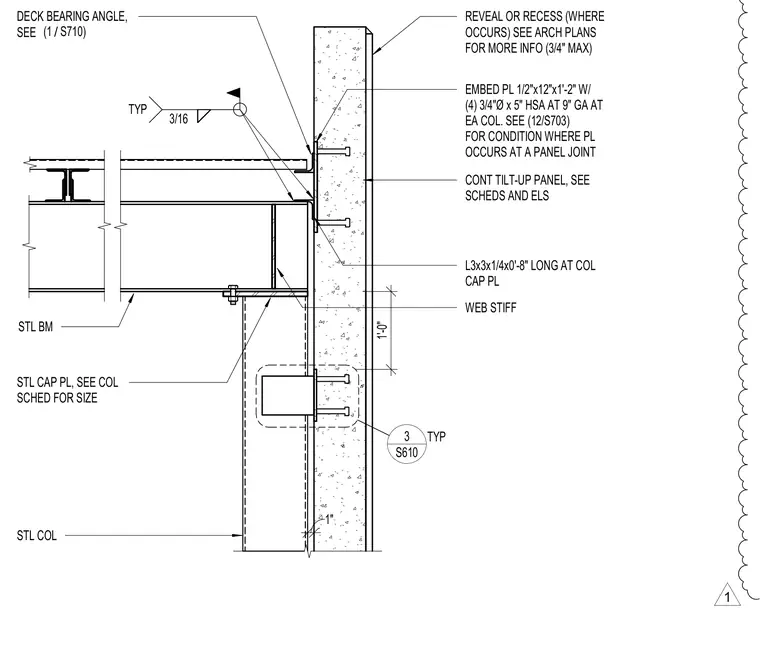

A steel column with a cap plate supports a steel beam, which features a web stiffener and a deck bearing angle welded with three-sixteenths inch fillet welds. An embed plate measuring one-half inch by twelve inches by one foot two inches is cast into the concrete wall, secured with four three-quarter inch diameter by five inch heavy stud anchors spaced at nine inches gauge at each column. An L3x3xone-quarter by zero foot eight inch long angle is attached at the column cap plate web stiffener. A reveal or recess of three-quarters inch maximum is provided at the exterior concrete face per architectural plans.
1" STL COL STL CAP PL, SEE COL SCHED FOR SIZE STL BM EMBED PL 1/2"x12"x1'-2" W/ (4) 3/4"Ø x 5" HSA AT 9" GA AT EA COL. SEE (12/S703) FOR CONDITION WHERE PL OCCURS AT A PANEL JOINT L3x3x1/4x0'-8" LONG AT COL CAP PL WEB STIFF REVEAL OR RECESS (WHERE OCCURS) SEE ARCH PLANS FOR MORE INFO (3/4" MAX) CONT TILT-UP PANEL, SEE SCHEDS AND ELS 3/16 TYP 1'-0" S610 3 TYP DECK BEARING ANGLE, SEE / (1 S710) 1
