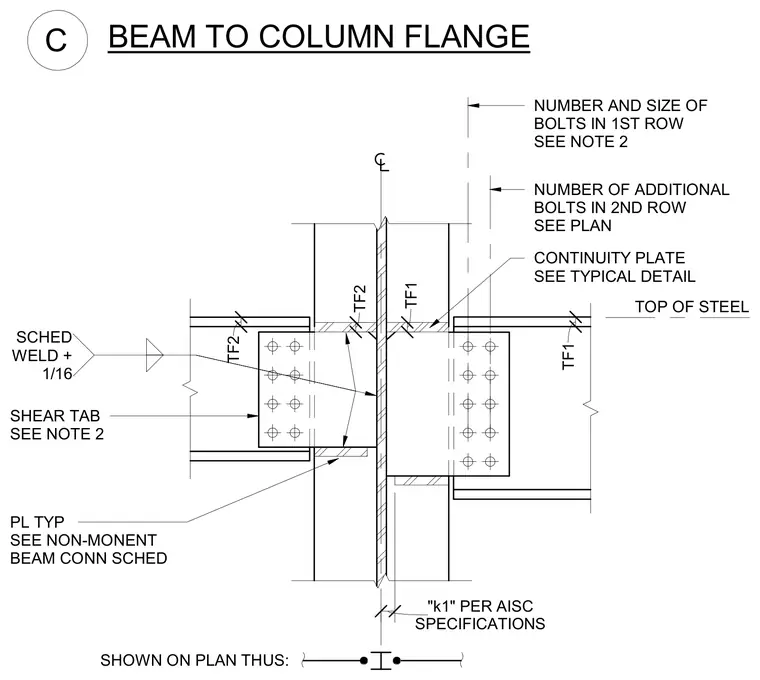

A steel beam connects to a structural steel column flange using a welded shear tab and high-strength bolts. The shear tab is welded to the column flange with specified weld sizes and is bolted to the beam web using multiple rows of bolts sized per structural schedules. Continuity plates are provided at the column web aligned with the beam flanges. Clearances and detailing conform to AISC specifications for k1 distances.
SHEAR TAB SEE NOTE 2 SHOWN ON PLAN THUS: TOP OF STEEL BEAM TO COLUMN FLANGE C SCHED WELD + 1/16 TF2 TF2 TF1 TF1 SPECIFICATIONS "k1" PER AISC NUMBER AND SIZE OF BOLTS IN 1ST ROW SEE NOTE 2 NUMBER OF ADDITIONAL BOLTS IN 2ND ROW SEE PLAN CONTINUITY PLATE SEE TYPICAL DETAIL PL TYP SEE NON-MONENT BEAM CONN SCHED
