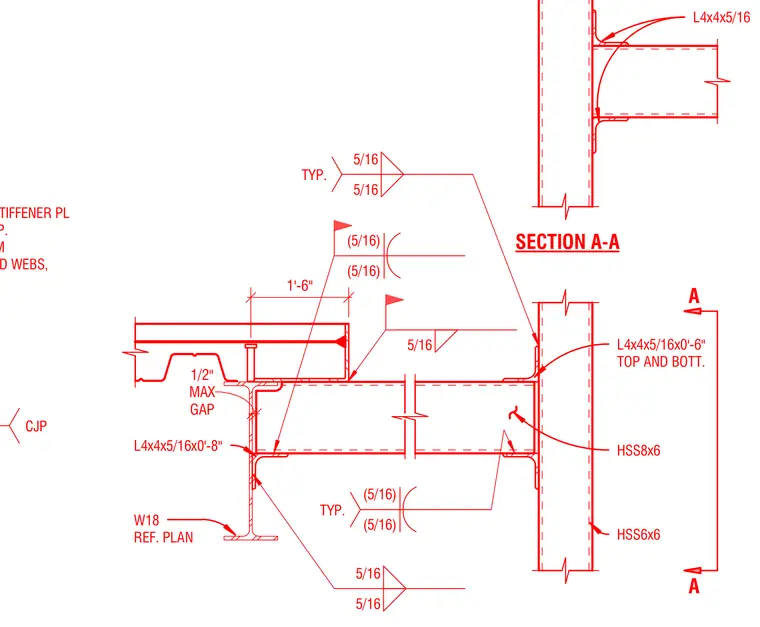

An HSS8x6 wind girt frames into an HSS6x6 column and connects to a W18 beam supporting a metal deck floor. L4x4x5/16 angles measuring zero feet six inches long attach the girt to the column top and bottom with five-sixteenths inch fillet welds. An L4x4x5/16 angle measuring zero feet eight inches long connects the girt to the W18 beam with a one-half inch maximum gap. Grade 50 stiffener plates are welded to the beam flanges and webs with complete joint penetration welds, placed on each side as typical.
SECTION A-A L4x4x5/16 GAP 1/2" MAX 5/16 5/16 TYP. (5/16) (5/16) 5/16 5/16 HSS6x6 W18 REF. PLAN (5/16) (5/16) TYP. L4x4x5/16x0'-8" 5/16 HSS8x6 L4x4x5/16x0'-6" TOP AND BOTT. 1'-6" A A CJP 1/2" GR 50 STIFFENER PL EA. SIDE, TYP. CJP TO BEAM FLANGES AND WEBS,
