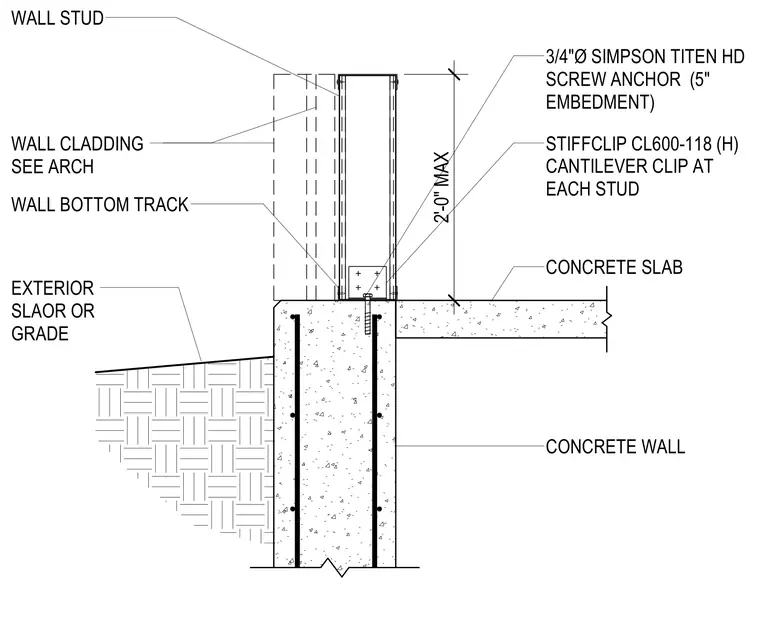

A cold-formed steel wall stud rests on a wall bottom track over a concrete slab and concrete wall. The stud is anchored to the concrete slab using a Stiffclip CL600-118 (H) cantilever clip at each stud, fastened with a 3/4-inch diameter Simpson Titen HD screw anchor with a 5-inch embedment. Exterior grade or slab conditions meet the assembly at a maximum height of 2 feet zero inches.
WALL STUD CONCRETE SLAB WALL CLADDING SEE ARCH WALL BOTTOM TRACK STIFFCLIP CL600-118 (H) CANTILEVER CLIP AT EACH STUD CONCRETE WALL 3/4"Ø SIMPSON TITEN HD SCREW ANCHOR (5" EMBEDMENT) EXTERIOR SLAOR OR GRADE 2'-0" MAX
