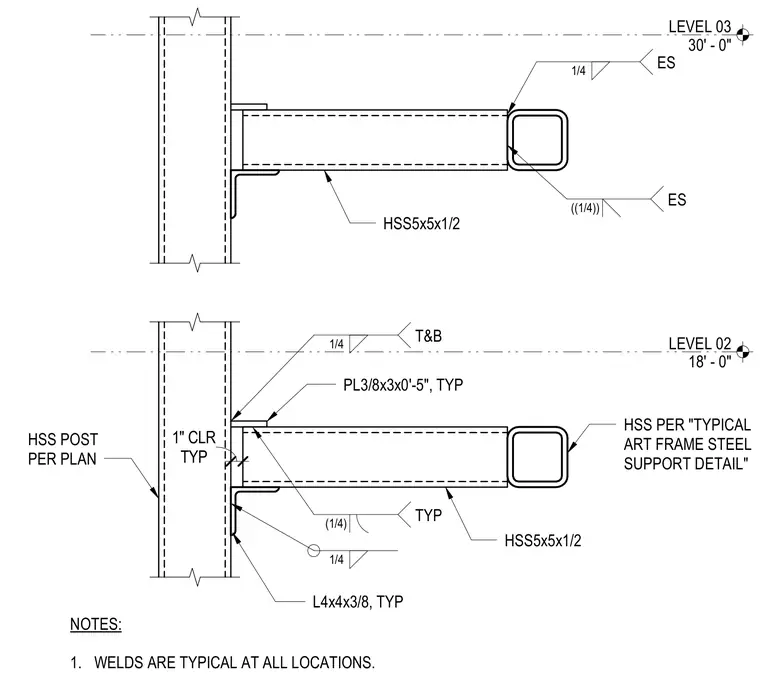

An HSS5x5x1/2 horizontal steel member connects to a vertical HSS post with a one-inch clearance using a top plate measuring 3/8 inch by 3 inches by 0 feet 5 inches and a bottom angle measuring L4x4x3/8. Fillet welds of 1/4-inch size secure the top plate and bottom angle to the vertical post and horizontal member. All welds are typical at all locations.
LEVEL 03 30' - 0" LEVEL 02 18' - 0" T&B 1/4 PL3/8x3x0'-5", TYP HSS PER "TYPICAL ART FRAME STEEL SUPPORT DETAIL" HSS5x5x1/2 TYP (1/4) 1/4 L4x4x3/8, TYP NOTES: 1. WELDS ARE TYPICAL AT ALL LOCATIONS. HSS POST PER PLAN HSS5x5x1/2 ES ((1/4)) ES 1/4 TYP 1" CLR
