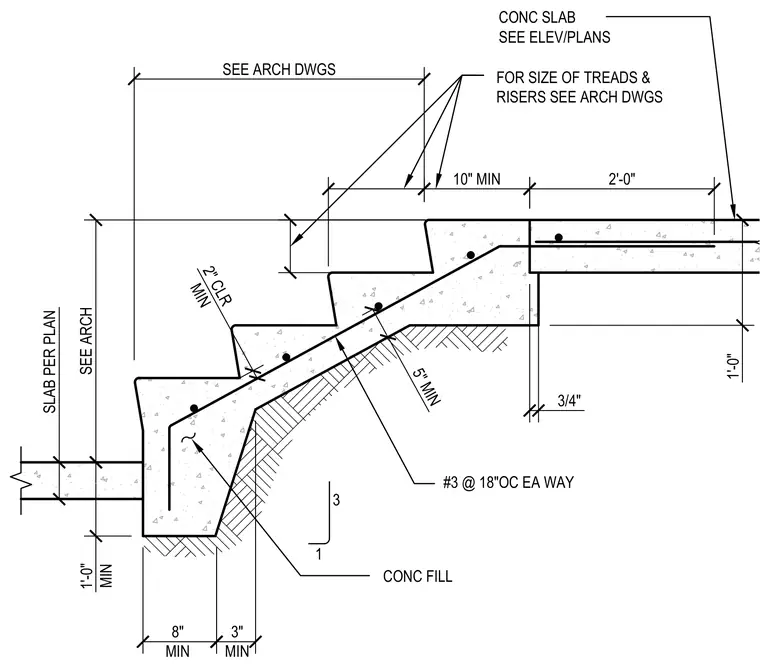

A concrete stair is supported on grade with concrete fill over a compacted subgrade. The stair slab is reinforced with number three bars spaced at eighteen inches on center each way with a two-inch minimum concrete clearance. Dimensions indicate a five-inch minimum stair slab thickness, an eight-inch minimum footing width, and a three-inch minimum toe extension. Tread and riser dimensions and overall slab dimensions are coordinated per architectural drawings.
5" MIN SEE ARCH DWGS SEE ARCH SLAB PER PLAN 1'-0" MIN 8" MIN 3" MIN 1 3 3/4" #3 @ 18"OC EA WAY 10" MIN 2'-0" 1'-0" FOR SIZE OF TREADS & RISERS SEE ARCH DWGS CONC FILL CONC SLAB SEE ELEV/PLANS 2" CLR MIN
