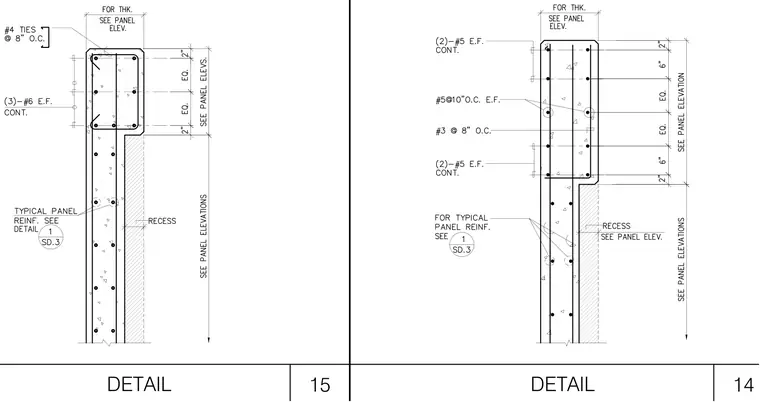

Precast concrete wall panels feature top pilaster or thickening details reinforced with number 4 ties spaced at eight inches on center, alongside continuous number 5 and number 6 bars each face. Vertical panel sections include specific recesses and dimensioned bar placements verified per panel elevations. Additional horizontal distribution steel utilizes number 3 bars spaced at eight inches on center and number 5 bars spaced at ten inches on center each face. Typical panel reinforcement references detail 1 on sheet SD.3.
