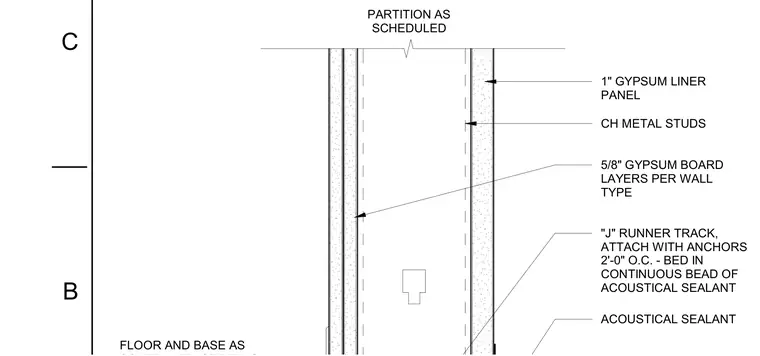

The base of the shaftwall partition consists of a J-runner track secured to the floor with anchors spaced at two feet on center, bedded in a continuous bead of acoustical sealant. CH metal studs and one-inch gypsum liner panels form the core of the wall assembly. Layers of five-eighths-inch gypsum board are applied to both sides as scheduled, completing the partition base.
CH METAL STUDS 5/8" GYPSUM BOARD LAYERS PER WALL TYPE ACOUSTICAL SEALANT 1" GYPSUM LINER PANEL "J" RUNNER TRACK, ATTACH WITH ANCHORS 2'-0" O.C. - BED IN CONTINUOUS BEAD OF ACOUSTICAL SEALANT FLOOR AND BASE AS PARTITION AS SCHEDULED C B
