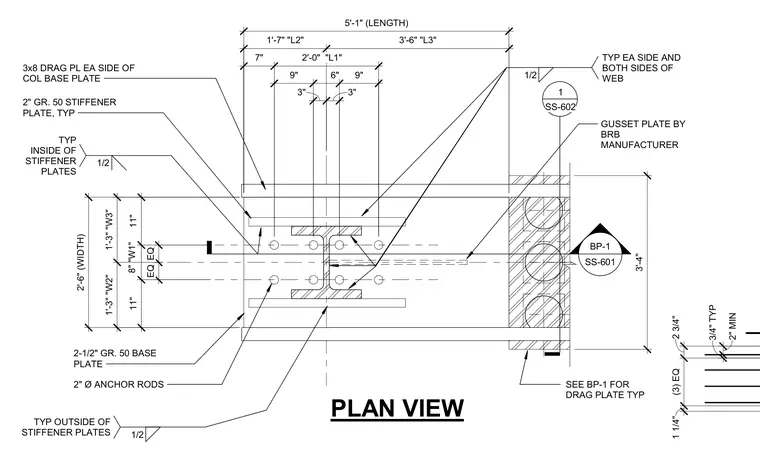

A heavy steel column base plate assembly measuring 2'-6" wide by 5'-1" long. The 2-1/2 inch Grade 50 base plate is detailed with 2 inch Grade 50 stiffener plates welded typical inside and outside with 1/2 inch fillet welds, as well as on each side and both sides of the column web. Two-inch diameter anchor rods secure the base. A gusset plate provided by the buckling-restrained brace manufacturer connects to the assembly, flanked by 3x8 drag plates on each side of the column base plate.
2 3/4" (3) EQ 1 1/4" 2" MIN 3/4" TYP 2" GR. 50 STIFFENER PLATE, TYP 2-1/2" GR. 50 BASE PLATE 1/2 TYP INSIDE OF STIFFENER PLATES 1/2 TYP EA SIDE AND BOTH SIDES OF WEB 1/2 TYP OUTSIDE OF STIFFENER PLATES 11" 8" "W1" 11" 1'-7" "L2" 3'-6" "L3" 1'-3" "W3" 1'-3" "W2" 2'-6" (WIDTH) 5'-1" (LENGTH) PLAN VIEW 3'-4" 3x8 DRAG PL EA SIDE OF COL BASE PLATE 1 SS-602 2" Ø ANCHOR RODS GUSSET PLATE BY BRB MANUFACTURER 9" 6" 9" 3" 3" 2'-0" "L1" 7" EQ EQ SEE BP-1 FOR DRAG PLATE TYP BP-1 SS-601
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
