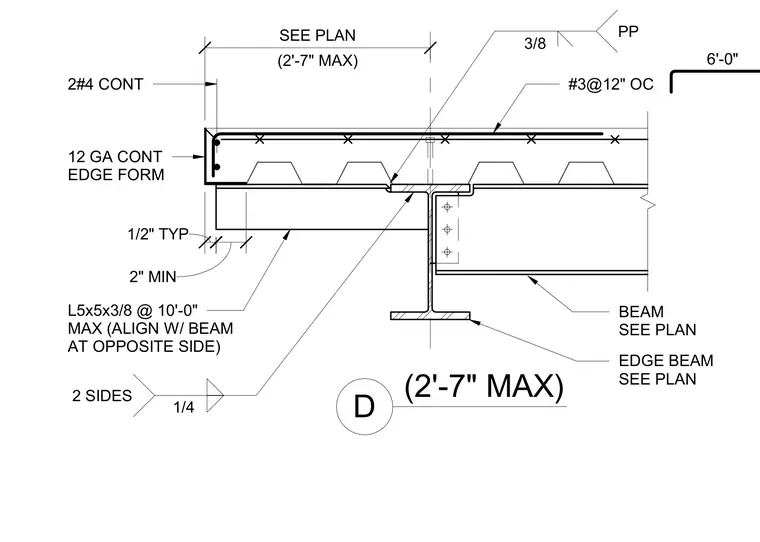

A concrete slab poured over metal decking bears on a structural steel edge beam, detailed with two continuous number four reinforcing bars and number three bars spaced at twelve inches on center. A twelve gauge continuous edge form retains the slab edge with a maximum cantilever of two feet seven inches. An L5x5x3/8 angle is positioned at a maximum spacing of ten feet zero inches and aligned with the beam on the opposite side. A 3/8 inch plate is welded to the supporting steel with a 1/4 inch fillet weld applied to two sides.
(2'-7" MAX) D 6'-0" 2#4 CONT L5x5x3/8 @ 10'-0" MAX (ALIGN W/ BEAM AT OPPOSITE SIDE) 12 GA CONT EDGE FORM EDGE BEAM SEE PLAN BEAM SEE PLAN #3@12" OC (2'-7" MAX) SEE PLAN 3/8 PP 1/2" TYP 1/4 2 SIDES 2" MIN
