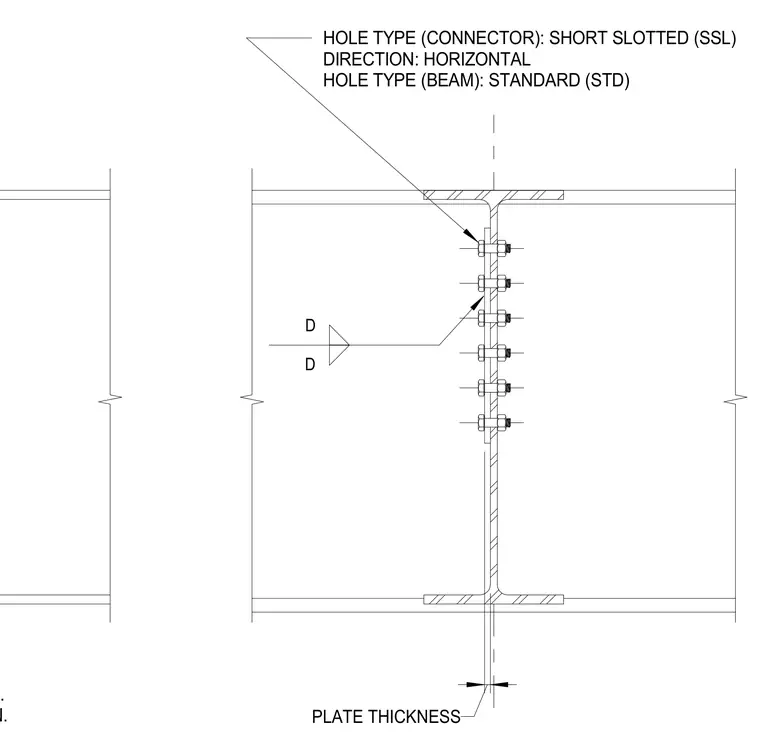

A wide-flange beam connects to a supporting member using a steel plate with a specified plate thickness. The connector plate features horizontal short-slotted holes while the beam web uses standard holes. High-strength bolts secure the connection assembly.
WF BEAM. SEE PLAN. HOLE TYPE (CONNECTOR): SHORT SLOTTED (SSL) DIRECTION: HORIZONTAL HOLE TYPE (BEAM): STANDARD (STD) PLATE THICKNESS D D
