A dowel laminated timber deck bears directly onto a steel beam flange with shear studs omitted at the connection location. An uplift-resistant connection assembly transfers a five thousand pound allowable stress load from the timber deck to the steel beam flange. Four three-quarter-inch by six-inch grip lag bolts at four and one-half inch spacing secure through a three-quarter-inch by eighteen-inch by one-foot six-inch ASTM A36 steel plate placed at the middle of the dowel laminated timber dimensional lumber width.

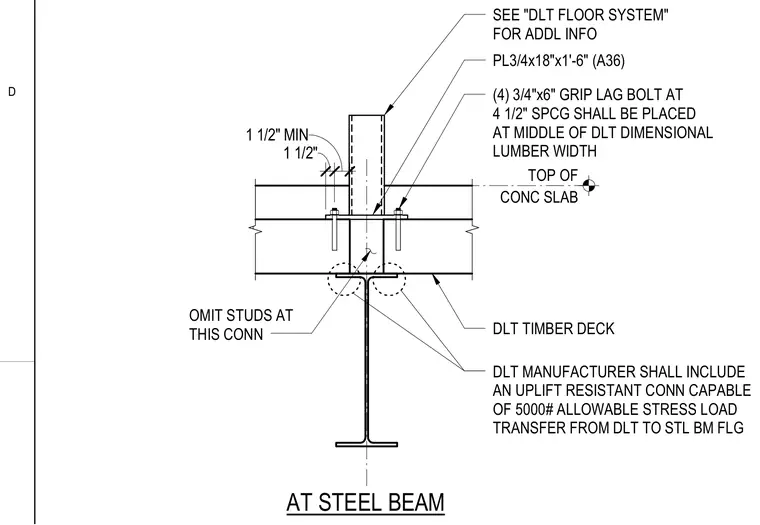

AT STEEL BEAM (4) 3/4"x6" GRIP LAG BOLT AT 4 1/2" SPCG SHALL BE PLACED AT MIDDLE OF DLT DIMENSIONAL LUMBER WIDTH PL3/4x18"x1'-6" (A36) OMIT STUDS AT THIS CONN 1 1/2" 1 1/2" MIN SEE "DLT FLOOR SYSTEM" FOR ADDL INFO DLT TIMBER DECK DLT MANUFACTURER SHALL INCLUDE AN UPLIFT RESISTANT CONN CAPABLE OF 5000# ALLOWABLE STRESS LOAD TRANSFER FROM DLT TO STL BM FLG CONC SLAB TOP OF D
