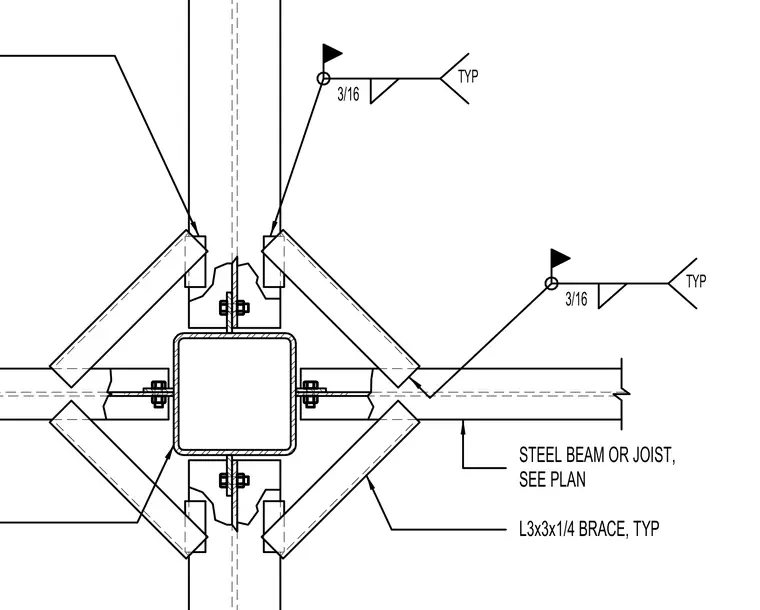

An HSS column receives diagonal angle bracing and steel beams or joists sized per plan. The diagonal braces utilize L3x3x1/4 angles welded with typical three-sixteenth-inch fillet welds. Beams connect via bolted shear tabs welded to the column face.
